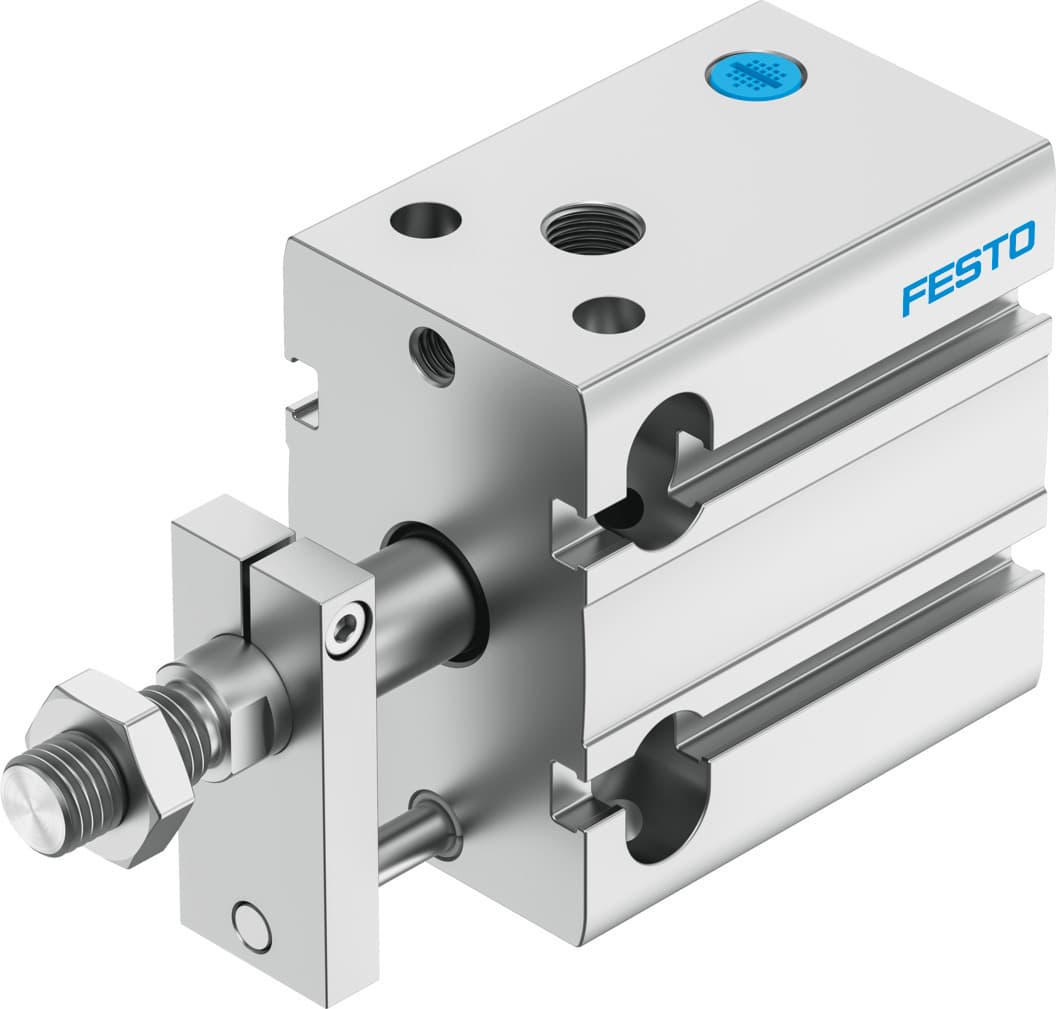

dpdm-q-32-15-p-pa
Product ID:8554
Updated: 2026/4/4
Key Features
- 1Construct with high-alloy stainless steel rods for corrosion resistance. 2、Integrate elastic cushioning rings for smooth, controlled deceleration. 3、Mount flexibly via through-hole or female thread for easy installation. 4、Enable precise control with optional proximity sensing capability. 5、Operate reliably from 1.5 to 8 bar in diverse industrial environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 15mm | Piston diameter | 32 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Single-acting Pulling | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991733 |
| Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1.5bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Theoretical force at 6 bar, retracting | 377N |
| Theoretical force at 6 bar, advancing | 377N | Moving mass at 0?mm stroke | 109g |
| Additional moving mass per 10?mm stroke | 10.5g | Basic weight with 0?mm stroke | 334g |
| Additional weight per 10?mm stroke | 52.5g | Type of mounting | Optionally: With through-hole With internal thread |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 4828501 |
Specifications may be subject to change without notice
