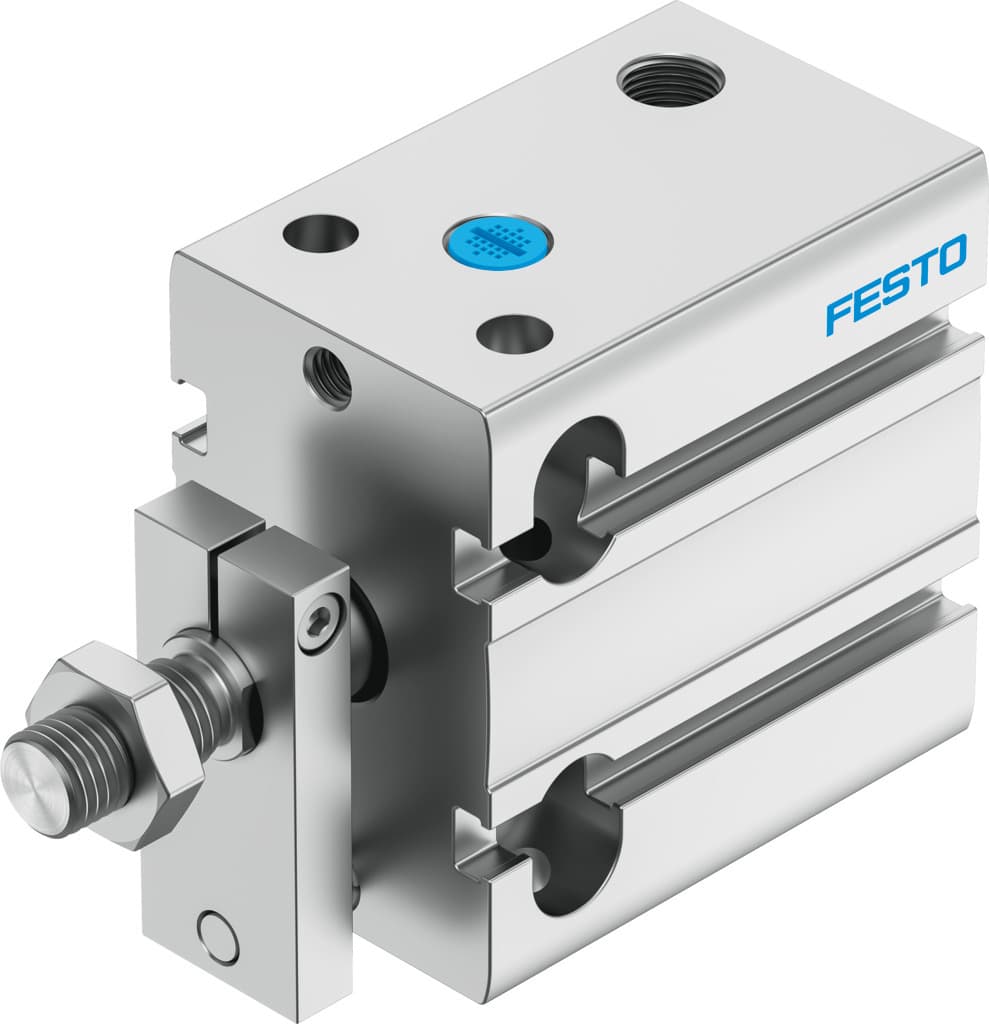

dpdm-q-32-15-s-pa
Product ID:8551
Updated: 2026/4/4
Key Features
- 1Engineer precise and reliable performance for consistent industrial operation. 2、Utilize single-acting mode for efficient controlled pushing motions. 3、Reduce wear with elastic cushioning rings for smooth operation and extended lifespan. 4、Integrate easily into various systems with optional mounting positions. 5、Operate efficiently with compressed air across 0.15 to 0.8 MPa pressure ranges.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 15mm | Piston diameter | 32 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991732 |
| Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1.5bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 445N |
| Theoretical force at 6 bar, advancing | 445N | Moving mass at 0?mm stroke | 109g |
| Additional moving mass per 10?mm stroke | 10.5g | Basic weight with 0?mm stroke | 334g |
| Additional weight per 10?mm stroke | 52.5g | Type of mounting | Optionally: With through-hole With internal thread |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 4828492 |
Specifications may be subject to change without notice
