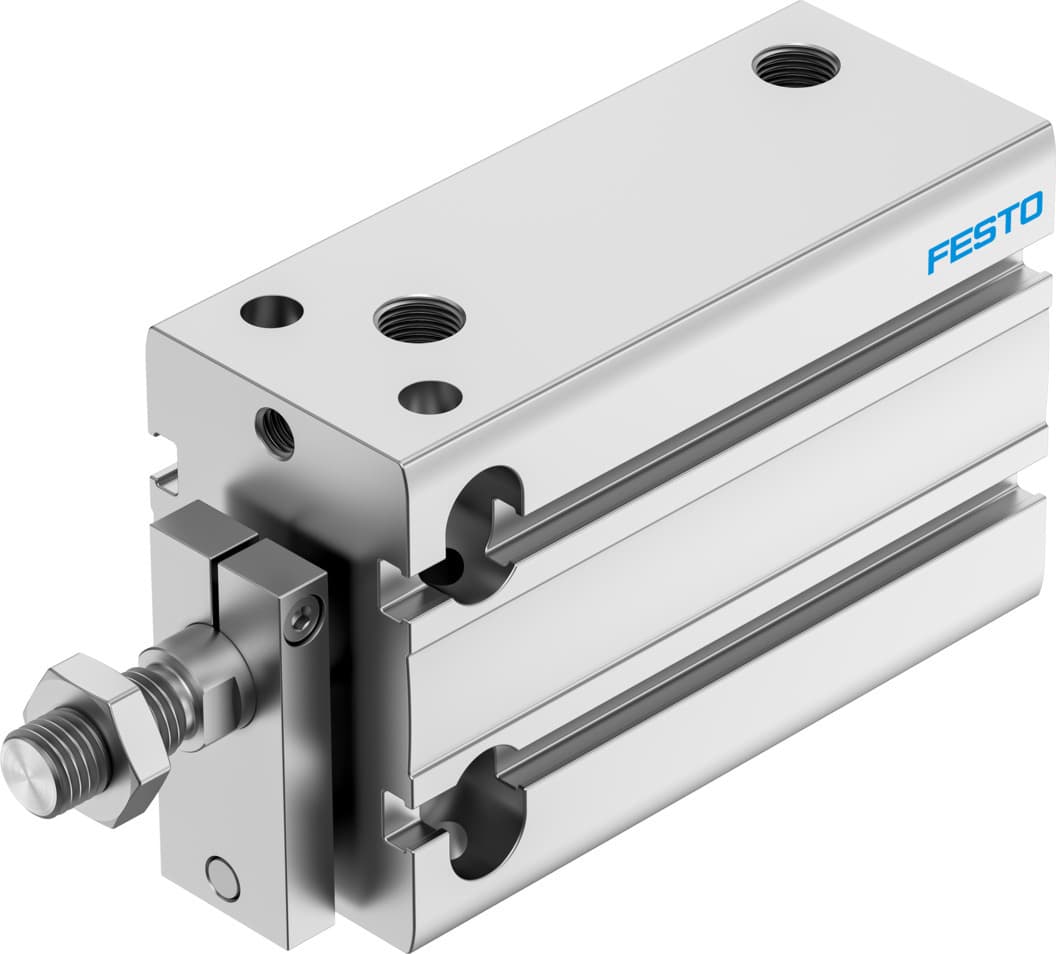

dpdm-q-32-50-pa
Product ID:8548
Updated: 2026/4/4
Key Features
- 1Deliver reliable double-acting performance with a 50mm stroke and 32mm piston diameter. 2、Ensure smooth operation and reduce component wear with elastic cushioning rings at both ends. 3、Achieve versatility in automation systems via controlled extension and retraction strokes. 4、Maintain reliable performance in moderate corrosion environments (Class 2) with compliant air quality. 5、Guarantee durability with a high-alloy stainless steel piston rod and anodized aluminum housing.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 50mm | Piston diameter | 32 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991737 |
| Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 483N |
| Theoretical force at 6 bar, retracting | 415N | Theoretical force at 6 bar, advancing | 483N |
| Moving mass at 0?mm stroke | 109g | Additional moving mass per 10?mm stroke | 10.5g |
| Basic weight with 0?mm stroke | 331g | Additional weight per 10?mm stroke | 52.5g |
| Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy stainless steel | Manufacturer ID | 4828472 |
Specifications may be subject to change without notice
