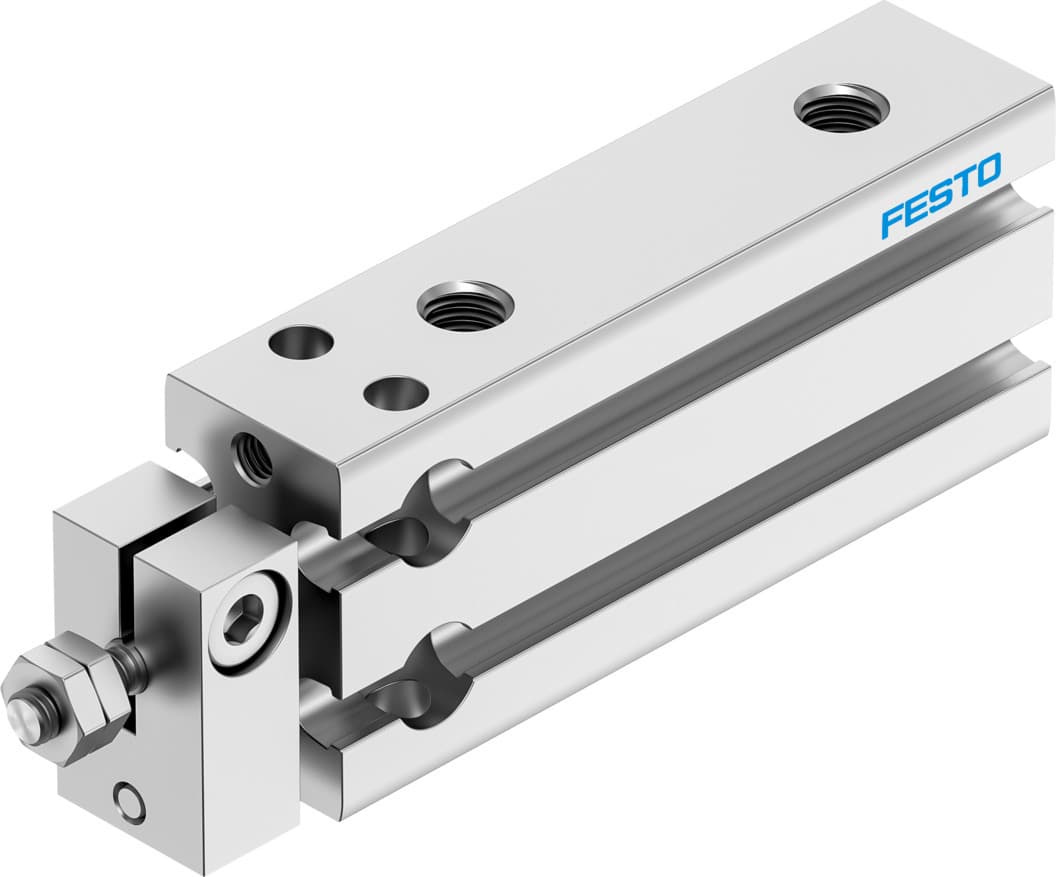

dpdm-q-6-20-pa
Product ID:8587
Updated: 2026/4/4
Key Features
- 1Utilize high-alloy stainless steel piston rods for durability. 2、Prevent unwanted movement with built-in rotation protection. 3、Reduce noise and vibration via elastic cushioning rings. 4、Enable precise position detection with proximity switches. 5、Choose flexible mounting and port options for easy installation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 20mm | Piston diameter | 6 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991737 |
| Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 2bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 17N |
| Theoretical force at 6 bar, retracting | 13N | Theoretical force at 6 bar, advancing | 17N |
| Moving mass at 0?mm stroke | 7.1g | Additional moving mass per 10?mm stroke | 0.9g |
| Basic weight with 0?mm stroke | 25.5g | Additional weight per 10?mm stroke | 6.3g |
| Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy stainless steel | Manufacturer ID | 4830964 |
Specifications may be subject to change without notice
