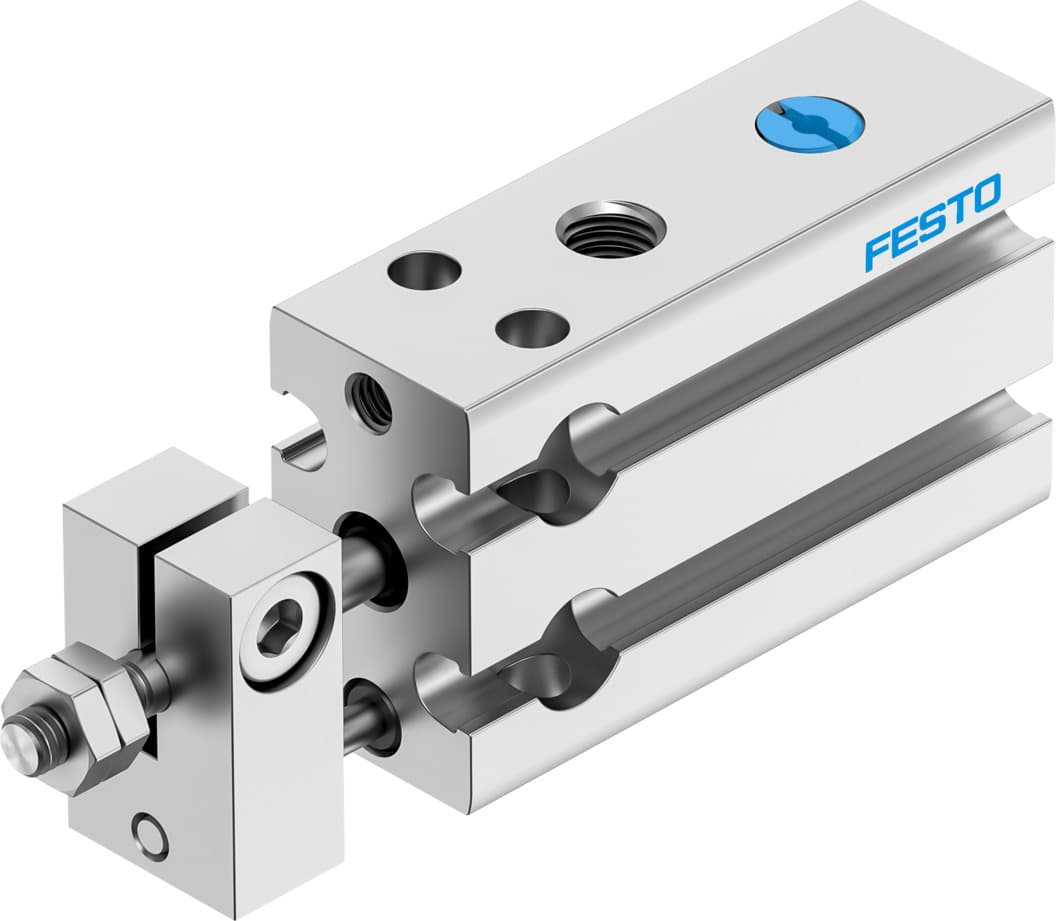

dpdm-q-6-5-p-pa
Product ID:8593
Updated: 2026/4/4
Key Features
- 1Feature flexible cushioning rings for smooth operation and reduced wear. 2、Utilize single-acting pulling action for precise one-way motion. 3、Enable position detection with compatibility for proximity sensors. 4、Offer a compact 5mm stroke and 6mm piston diameter. 5、Provide CRC 1 classification for low corrosion stress environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 6 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Single-acting Pulling | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991733 |
| Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 2.5bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Theoretical force at 6 bar, retracting | 9N |
| Theoretical force at 6 bar, advancing | 9N | Moving mass at 0?mm stroke | 7.5g |
| Additional moving mass per 10?mm stroke | 0.9g | Basic weight with 0?mm stroke | 25.5g |
| Additional weight per 10?mm stroke | 6.3g | Type of mounting | Optionally: With through-hole With internal thread |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 4830974 |
Specifications may be subject to change without notice
