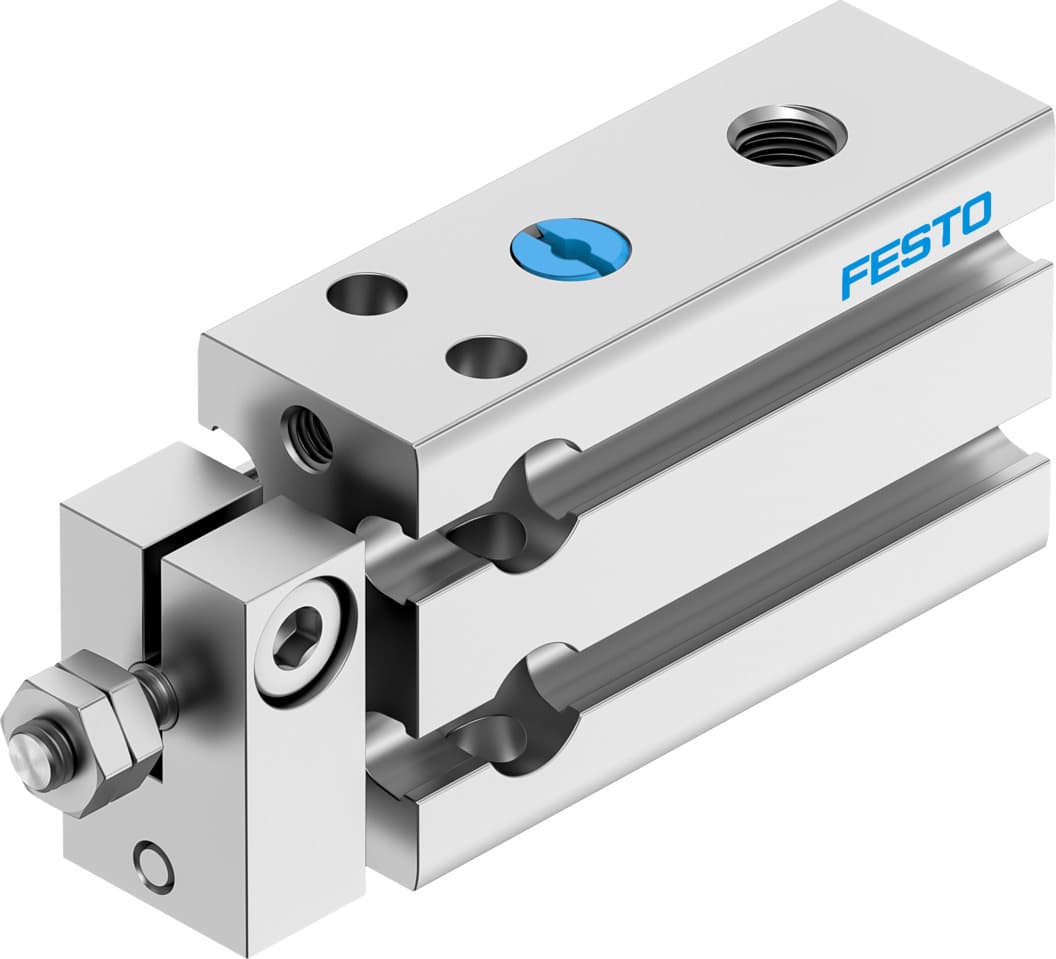

dpdm-q-6-5-s-pa
Product ID:8590
Updated: 2026/4/4
Key Features
- 1Utilize a compact, single-acting pneumatic cylinder for precise positioning. 2、Ensure smooth operation with elastic cushioning rings at both ends. 3、Operate with ISO 8573-1:2010 compressed air for reliability. 4、Construct with anodized aluminum and stainless steel for durability. 5、Support position sensing via proximity switches for control.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 6 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991732 |
| Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 2.5bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 13N |
| Theoretical force at 6 bar, advancing | 13N | Moving mass at 0?mm stroke | 7.5g |
| Additional moving mass per 10?mm stroke | 0.9g | Basic weight with 0?mm stroke | 25.5g |
| Additional weight per 10?mm stroke | 6.3g | Type of mounting | Optionally: With through-hole With internal thread |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 4830970 |
Specifications may be subject to change without notice
