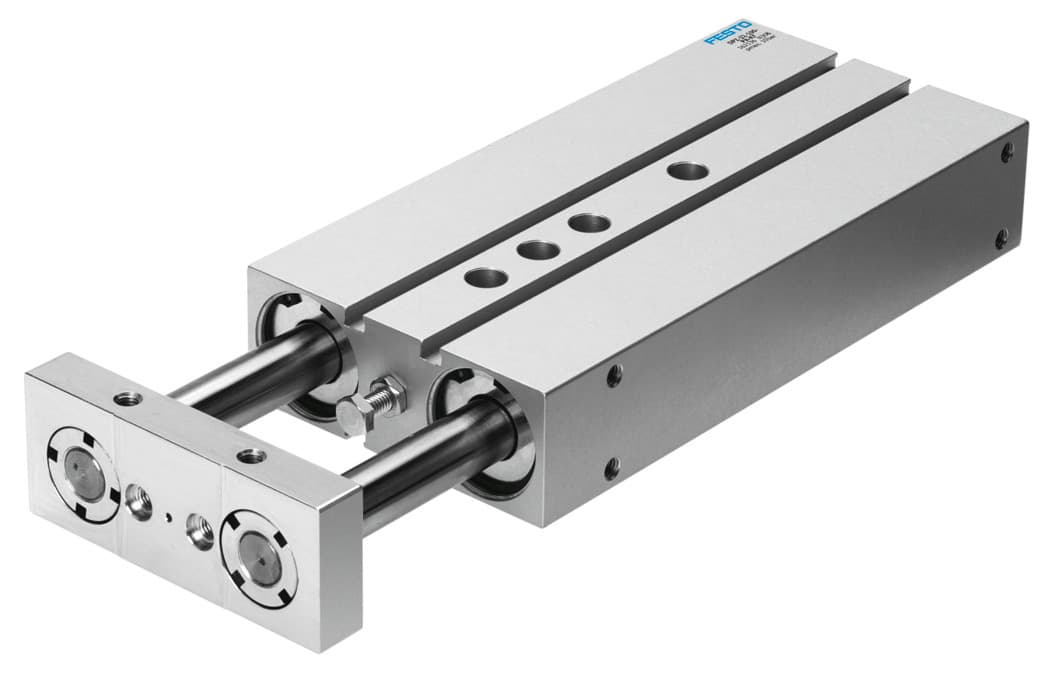

dpz-20-25-p-a-kf
Product ID:4256
Updated: 2026/4/3
Key Features
- 1Deliver high precision with a 25mm stroke and 20mm piston diameter. 2、Adjust the end-position range by 10mm for flexible customization. 3、Reduce wear using elastic cushioning rings at both ends. 4、Ensure smooth movement with a recirculating ball bearing guide. 5、Resist corrosion with durable aluminum alloy and steel construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 25mm | Adjustable end position range/length | 10mm |
| Piston diameter | 20 mm | Drive unit operating mode | Yoke |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Guide | Recirculating ball bearing guide | Structural design | Guide |
| Position sensing | For proximity sensor | Symbol | 00991249 |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.2J |
| Theoretical force at 6 bar, retracting | 282N | Theoretical force at 6 bar, advancing | 376N |
| Alternative connections | See product drawing | Pneumatic connection | M5 |
| Cover material | Wrought aluminum alloy | Seals material | NBR |
| Housing material | Wrought aluminum alloy | Piston rod material | Case-hardened steel |
| Manufacturer ID | 162062 |
