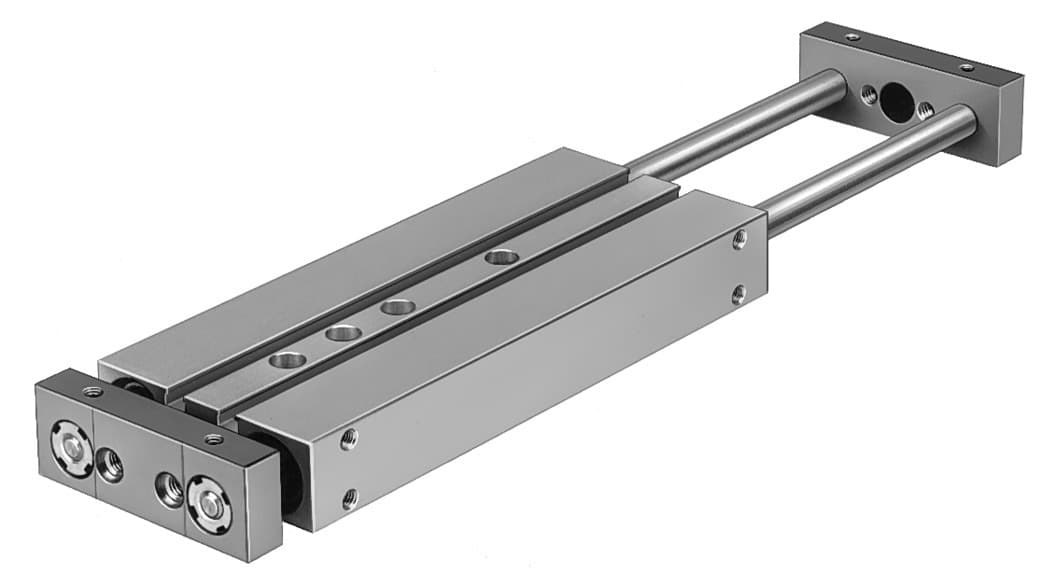

dpzj-16-10-p-a-kf-s2
Product ID:4249
Updated: 2026/4/3
Key Features
- 1Ensure precise movement with a 16mm piston and 10mm stroke. 2、Operate efficiently with bi-directional motion control. 3、Reduce wear using elastic cushioning rings at both ends. 4、Withstand moderate corrosion with CRC 2 resistance. 5、Integrate flexibly via optional mounts and plain-bearing guides.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Adjustable end position range/length | 10mm |
| Piston diameter | 16 mm | Drive unit operating mode | Yoke |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Guide | Recirculating ball bearing guide | Structural design | Guide |
| Position sensing | For proximity sensor | Symbol | 00991243 |
| Variants | Through piston rod | Operating pressure | 1bar 10bar |
| Max. speed | 1m/s | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.15J |
| Theoretical force at 6 bar, retracting | 180N | Theoretical force at 6 bar, advancing | 180N |
| Alternative connections | See product drawing | Pneumatic connection | M5 |
| Cover material | Wrought aluminum alloy | Seals material | NBR |
| Housing material | Wrought aluminum alloy | Piston rod material | Case-hardened steel |
| Manufacturer ID | 162047 |
Specifications may be subject to change without notice
