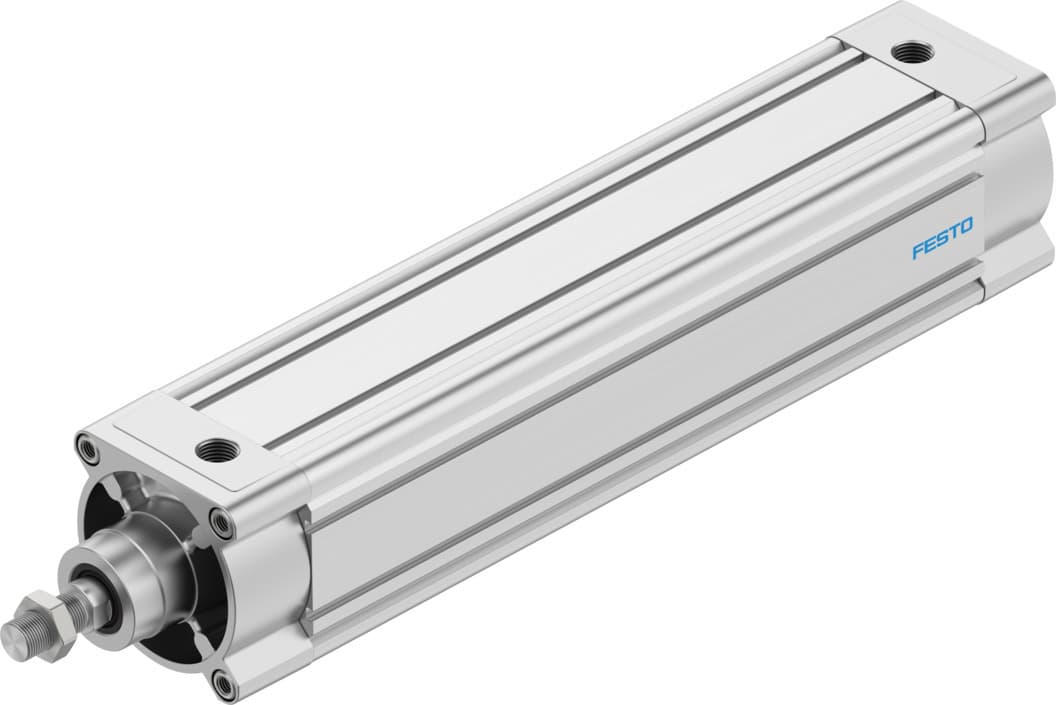

dsbc-100-400-d3-ppsa-n3
Product ID:323
Updated: 2026/4/3
Key Features
- 1Deliver a 400 mm stroke and 100 mm piston diameter. 2、Feature self-adjusting pneumatic end-position cushioning. 3、Offer versatile mounting with an M20x1.5 piston rod thread. 4、Operate within 0.4 to 12 bar pressure range reliably. 5、Conform to ISO 15552 for industrial compatibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 400mm | Piston diameter | 100 mm |
| Piston rod thread | M20x1.5 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00992970 |
| Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 2.5J | Cushioning length | 31mm |
| Theoretical force at 6 bar, retracting | 4418N | Theoretical force at 6 bar, advancing | 4712N |
| Moving mass at 0?mm stroke | 1000g | Additional moving mass per 10?mm stroke | 39g |
| Basic weight with 0?mm stroke | 3728g | Additional weight per 10?mm stroke | 152g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/2 |
| Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
| Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
| Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
| Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
| Flange screws material | Steel, galvanized | Manufacturer ID | 8165692 |
Specifications may be subject to change without notice
