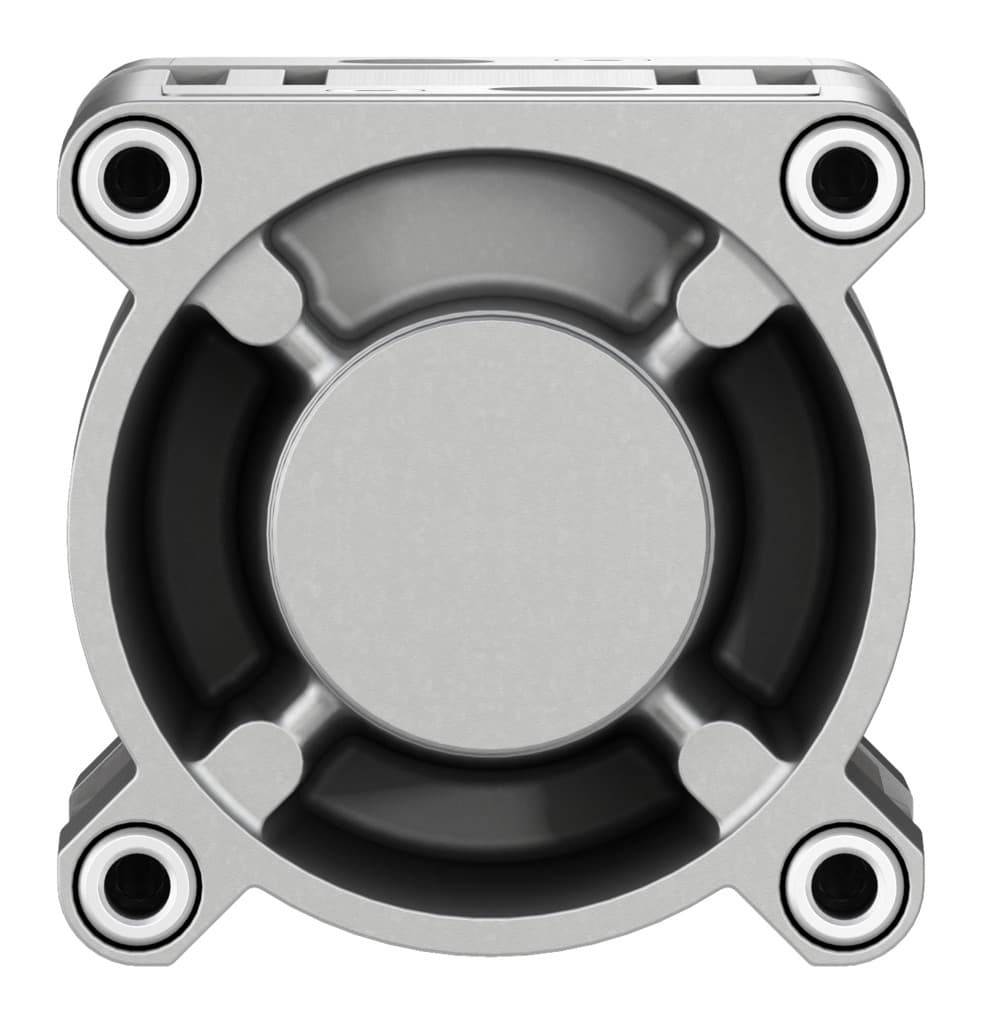

dsbc-100-40-ppva-n3
Product ID:1500
Updated: 2026/4/4
Key Features
- 1Feature adjustable pneumatic cushioning at both ends for smooth operation. 2、Provide precise control with a 40 mm piston and 100 mm stroke. 3、Conform to ISO 15552 standard for wide compatibility. 4、Mount via female thread or accessories for flexible installation. 5、Construct from die-cast aluminum and steel for durability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 40mm | Piston diameter | 100 mm |
| Piston rod thread | M20x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 2.5J | Cushioning length | 31mm |
| Theoretical force at 6 bar, retracting | 4418N | Theoretical force at 6 bar, advancing | 4712N |
| Moving mass at 0?mm stroke | 1000g | Additional moving mass per 10?mm stroke | 39g |
| Basic weight with 0?mm stroke | 3665g | Additional weight per 10?mm stroke | 101g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/2 |
| Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
| Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
| Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
| Material of bearing | POM | Flange screws material | Steel, galvanized |
| Manufacturer ID | 1384805 |
