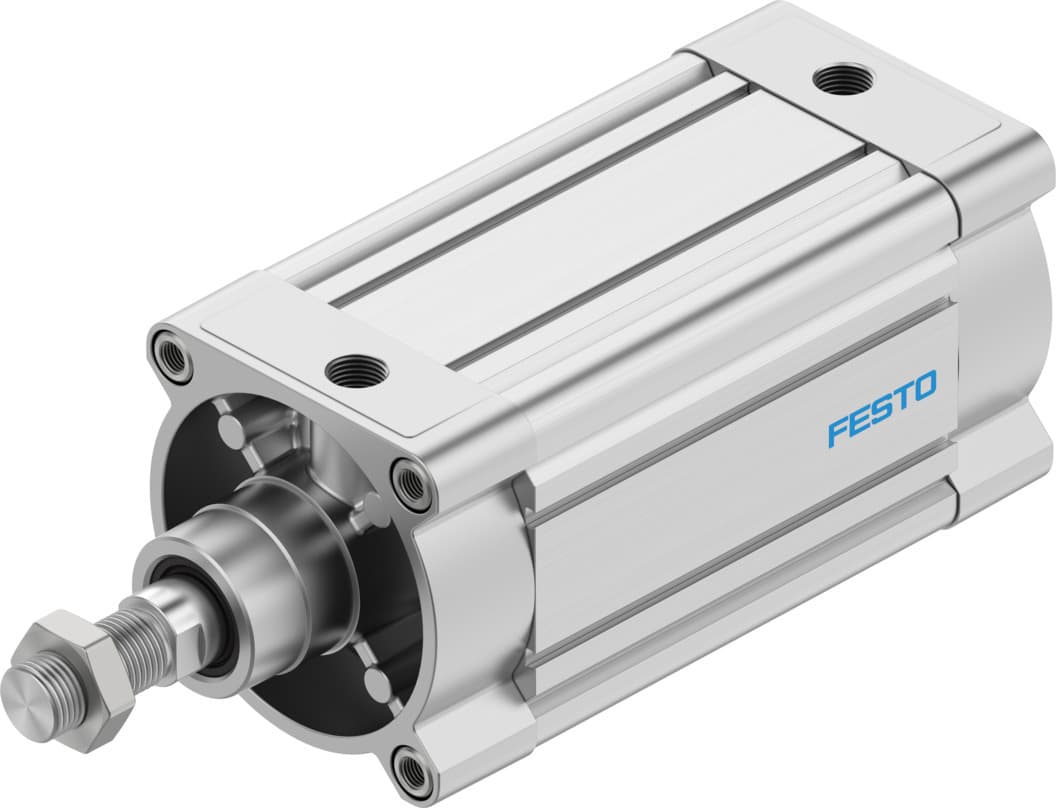

dsbc-125-125-d3-ppsa-n3
Product ID:351
Updated: 2026/7/4
Key Features
- 1Comply with ISO 15552 standards for guaranteed system compatibility and reliability.
- 2Reduce impact and wear using adjustable pneumatic cushioning on both ends.
- 3Enable precise position sensing with sensor slots on three sides (D3 feature).
- 4Achieve accurate movement control with a 125 mm piston diameter and 125 mm stroke.
- 5Ensure long-lasting performance in demanding environments with a robust design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 125mm | Piston diameter | 125 mm |
| Piston rod thread | M27x2 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00992970 |
| Variants | Piston rod at one end | Operating pressure | 0.2bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 3.3J | Cushioning length | 45mm |
| Theoretical force at 6 bar, retracting | 6881N | Theoretical force at 6 bar, advancing | 7363N |
| Moving mass at 0?mm stroke | 2245g | Additional moving mass per 10?mm stroke | 63g |
| Basic weight with 0?mm stroke | 6768g | Additional weight per 10?mm stroke | 247g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/2 |
| Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
| Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
| Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
| Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
| Flange screws material | Steel, galvanized | Manufacturer ID | 8165663 |
Specifications may be subject to change without notice
