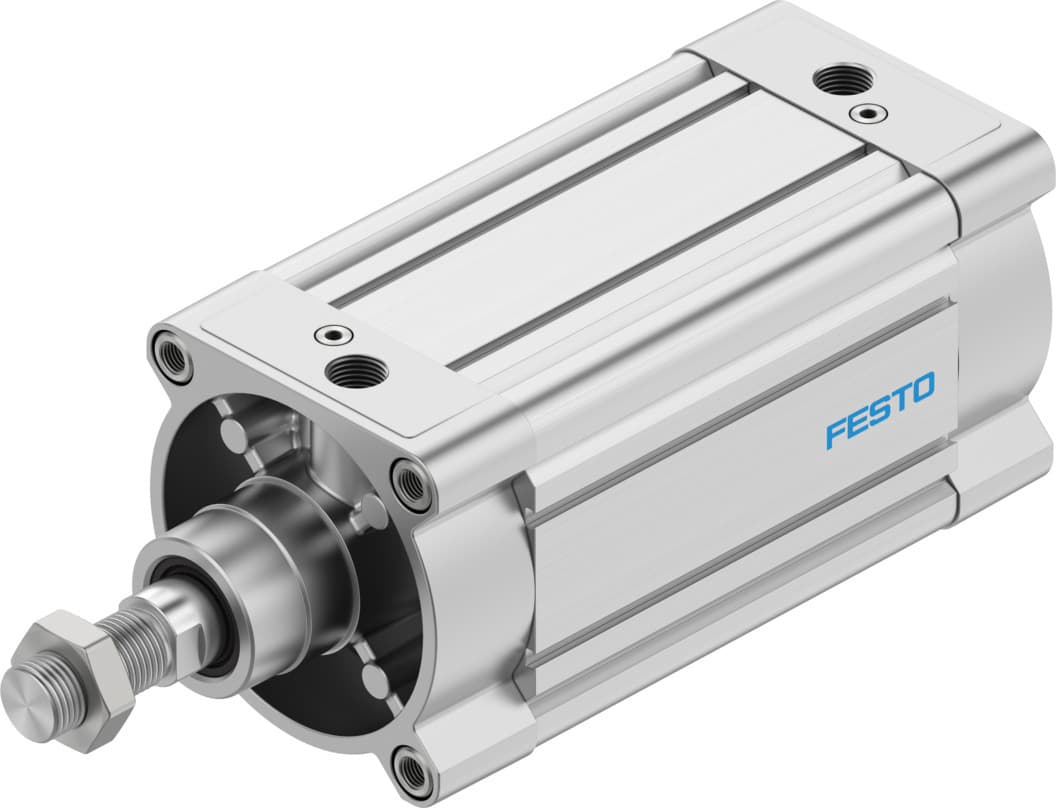

dsbc-125-125-d3-ppva-n3
Product ID:350
Updated: 2026/4/3
Key Features
- 1Deliver robust performance with a 125 mm piston diameter and M27x2 piston rod thread. 2、Ensure smooth operation using adjustable pneumatic cushioning at both ends. 3、Guarantee system compatibility by conforming to the ISO 15552 standard. 4、Operate reliably within a 0.2 to 10 bar pressure range for double-acting applications. 5、Utilize compressed air as per ISO 8573-1:2010 for consistent medium to heavy-duty performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 125mm | Piston diameter | 125 mm |
| Piston rod thread | M27x2 | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Variants | Piston rod at one end | Operating pressure | 0.2bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 3.3J | Cushioning length | 45mm |
| Theoretical force at 6 bar, retracting | 6881N | Theoretical force at 6 bar, advancing | 7363N |
| Moving mass at 0?mm stroke | 2245g | Additional moving mass per 10?mm stroke | 63g |
| Basic weight with 0?mm stroke | 6768g | Additional weight per 10?mm stroke | 247g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/2 |
| Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
| Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
| Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
| Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
| Flange screws material | Steel, galvanized | Manufacturer ID | 8165664 |
