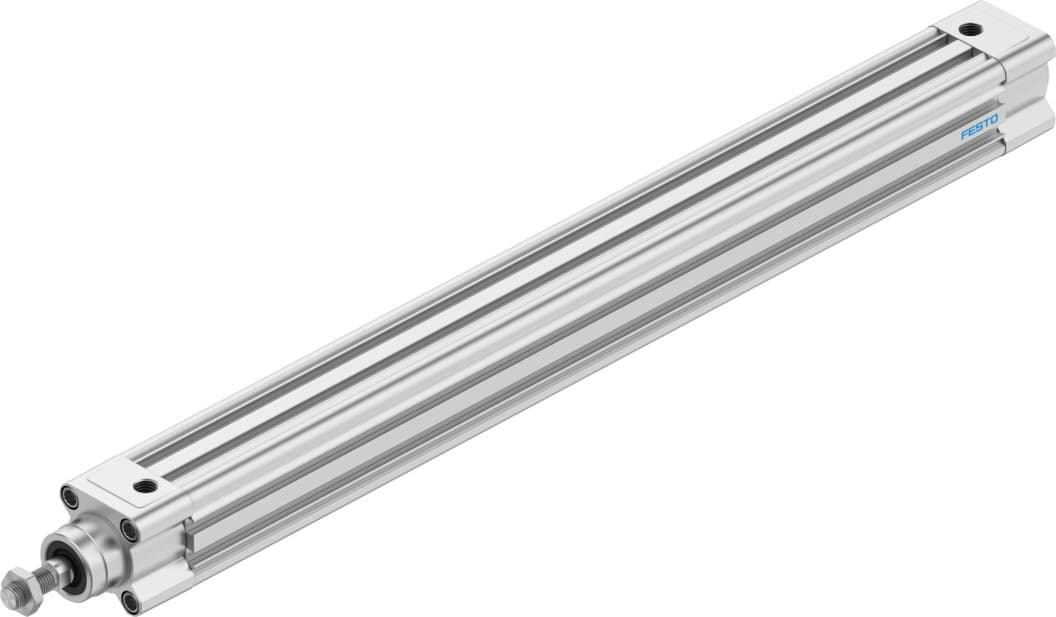

dsbc-32-400-d3-ppsa-n3
Product ID:384
Updated: 2026/4/3
Key Features
- 1Achieve a 400mm stroke with a 32mm piston diameter. 2、Secure connections using the M10x1.25 piston rod thread. 3、Mount in any position with adjustable pneumatic cushioning. 4、Operate from 0.8 to 12 bar for versatile applications. 5、Withstand harsh conditions from -20°C to 80°C.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 400mm | Piston diameter | 32 mm |
| Piston rod thread | M10x1.25 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00992970 |
| Variants | Piston rod at one end | Operating pressure | 0.8bar 12bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.4J | Cushioning length | 17mm |
| Theoretical force at 6 bar, retracting | 415N | Theoretical force at 6 bar, advancing | 483N |
| Moving mass at 0?mm stroke | 110g | Additional moving mass per 10?mm stroke | 9g |
| Basic weight with 0?mm stroke | 480g | Additional weight per 10?mm stroke | 31g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
| Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
| Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
| Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
| Flange screws material | Steel, galvanized | Manufacturer ID | 8165446 |
