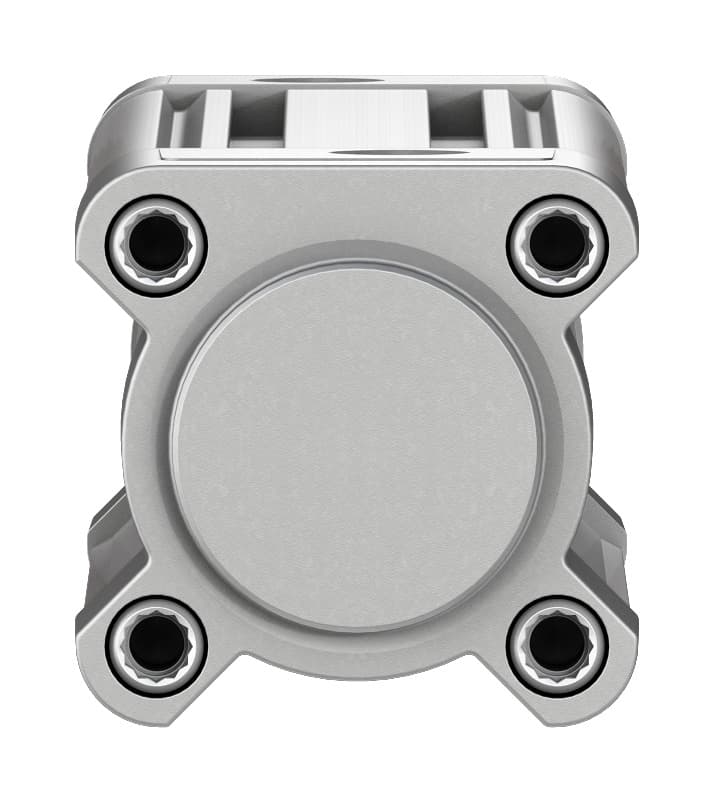

dsbc-40-125-ppsa-n3
Product ID:1435
Updated: 2026/4/4
Key Features
- 1Construct the piston rod from high-alloy steel for superior durability and corrosion resistance. 2、Incorporate self-adjusting pneumatic end-position cushioning (PPS) to ensure smooth operation and minimize component wear. 3、Mount the cylinder in any position to achieve maximum flexibility across diverse industrial automation setups. 4、Ensure full compliance with ISO 15552 standards for guaranteed compatibility with a broad range of industrial systems. 5、Design for double-acting operation with compressed air to deliver consistent performance from 0.6 to 12 bar.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 125mm | Piston diameter | 40 mm |
| Piston rod thread | M12x1.25 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00992970 |
| Variants | Piston rod at one end | Operating pressure | 0.6bar 12bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.7J |
| Cushioning length | 19mm | Theoretical force at 6 bar, retracting | 633N |
| Theoretical force at 6 bar, advancing | 754N | Moving mass at 0?mm stroke | 205g |
| Additional moving mass per 10?mm stroke | 16g | Basic weight with 0?mm stroke | 740g |
| Additional weight per 10?mm stroke | 37g | Type of mounting | Optionally: With internal thread With accessories |
| Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
| Cover material | Die-cast aluminum, coated | Piston seal material | TPE-U(PU) |
| Material of piston | Wrought aluminum alloy | Piston rod material | High-alloy steel |
| Piston rod wiper material | TPE-U(PU) | Buffer seal material | TPE-U(PU) |
| Cushion piston material | POM | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Nut material | Steel, galvanized | Material of bearing | POM |
| Flange screws material | Steel, galvanized | Manufacturer ID | 1376908 |
Specifications may be subject to change without notice
