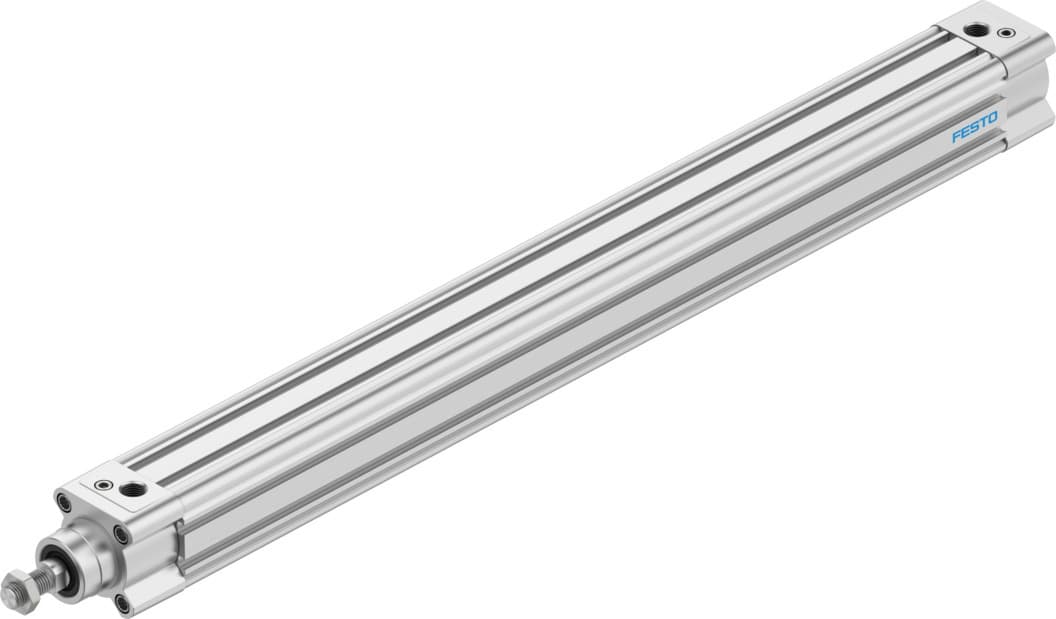

dsbc-40-500-d3-ppva-n3
Product ID:379
Updated: 2026/4/3
Key Features
- 1Utilize a 40mm bore and 500mm stroke for extended reach applications. 2、Adjust pneumatic cushioning at both ends to minimize impact and wear. 3、Ensure compatibility with ISO 15552 standards for easy integration. 4、Rely on high-alloy steel and corrosion-resistant materials for durability. 5、Mount flexibly via female thread or accessories for versatile installation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 500mm | Piston diameter | 40 mm |
| Piston rod thread | M12x1.25 | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Variants | Piston rod at one end | Operating pressure | 0.6bar 12bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.7J | Cushioning length | 19mm |
| Theoretical force at 6 bar, retracting | 633N | Theoretical force at 6 bar, advancing | 754N |
| Moving mass at 0?mm stroke | 205g | Additional moving mass per 10?mm stroke | 16g |
| Basic weight with 0?mm stroke | 768g | Additional weight per 10?mm stroke | 49g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/4 |
| Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
| Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
| Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
| Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
| Flange screws material | Steel, galvanized | Manufacturer ID | 8165584 |
