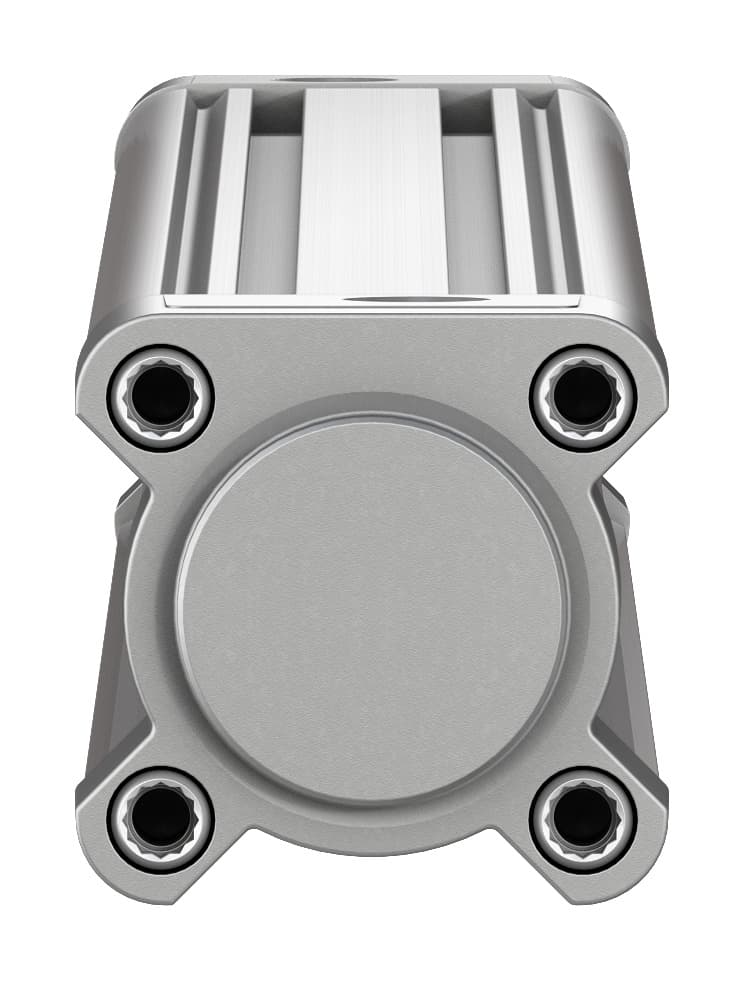

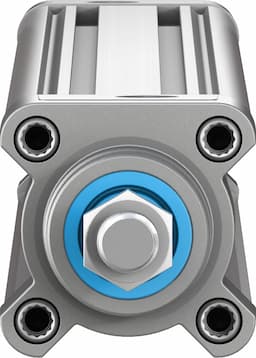

dsbc-40-500-ppsa-n3
Product ID:1441
Updated: 2026/4/4
Key Features
- 1Engineer high-performance automation with precise control. 2、Reduce system wear using self-adjusting end-position cushioning. 3、Ensure reliability with ISO 15552 international standard compliance. 4、Assemble in any position for flexible system integration. 5、Built with durable aluminum alloy and steel for longevity.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 500mm | Piston diameter | 40 mm |
| Piston rod thread | M12x1.25 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00992970 |
| Variants | Piston rod at one end | Operating pressure | 0.6bar 12bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.7J |
| Cushioning length | 19mm | Theoretical force at 6 bar, retracting | 633N |
| Theoretical force at 6 bar, advancing | 754N | Moving mass at 0?mm stroke | 205g |
| Additional moving mass per 10?mm stroke | 16g | Basic weight with 0?mm stroke | 740g |
| Additional weight per 10?mm stroke | 37g | Type of mounting | Optionally: With internal thread With accessories |
| Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
| Cover material | Die-cast aluminum, coated | Piston seal material | TPE-U(PU) |
| Material of piston | Wrought aluminum alloy | Piston rod material | High-alloy steel |
| Piston rod wiper material | TPE-U(PU) | Buffer seal material | TPE-U(PU) |
| Cushion piston material | POM | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Nut material | Steel, galvanized | Material of bearing | POM |
| Flange screws material | Steel, galvanized | Manufacturer ID | 1376914 |
Specifications may be subject to change without notice
