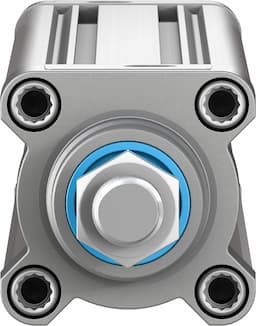

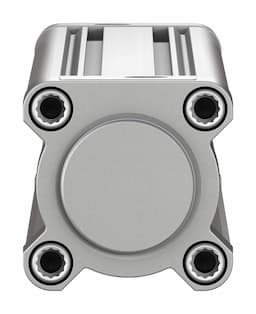

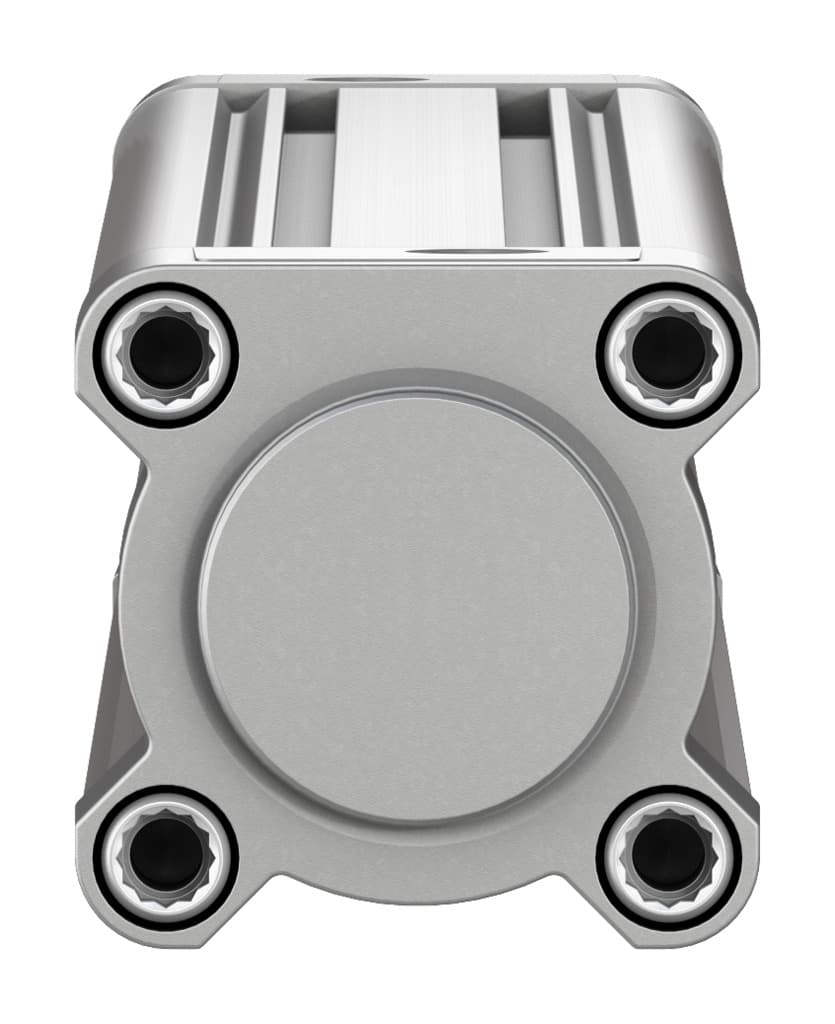

dsbc-50-400-ppva-n3
Product ID:1359
Updated: 2026/4/4
Key Features
- 1Deliver 400mm stroke and 50mm piston diameter for versatile industrial applications. 2、Feature adjustable pneumatic cushioning at both ends to ensure smooth operation. 3、Conform to ISO 15552 standard for easy integration and replacement. 4、Utilize M16x1.5 piston rod thread for secure and reliable mounting. 5、Operate in double-acting mode with compressed air to ISO 8573-1:2010.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 400mm | Piston diameter | 50 mm |
| Piston rod thread | M16x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 1J |
| Cushioning length | 22mm | Theoretical force at 6 bar, retracting | 990N |
| Theoretical force at 6 bar, advancing | 1178N | Moving mass at 0?mm stroke | 365g |
| Additional moving mass per 10?mm stroke | 25g | Basic weight with 0?mm stroke | 1190g |
| Additional weight per 10?mm stroke | 56g | Type of mounting | Optionally: With internal thread With accessories |
| Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
| Cover material | Die-cast aluminum, coated | Piston seal material | TPE-U(PU) |
| Material of piston | Wrought aluminum alloy | Piston rod material | High-alloy steel |
| Piston rod wiper material | TPE-U(PU) | Buffer seal material | TPE-U(PU) |
| Cushion piston material | POM | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Nut material | Steel, galvanized | Material of bearing | POM |
| Flange screws material | Steel, galvanized | Manufacturer ID | 1366958 |
