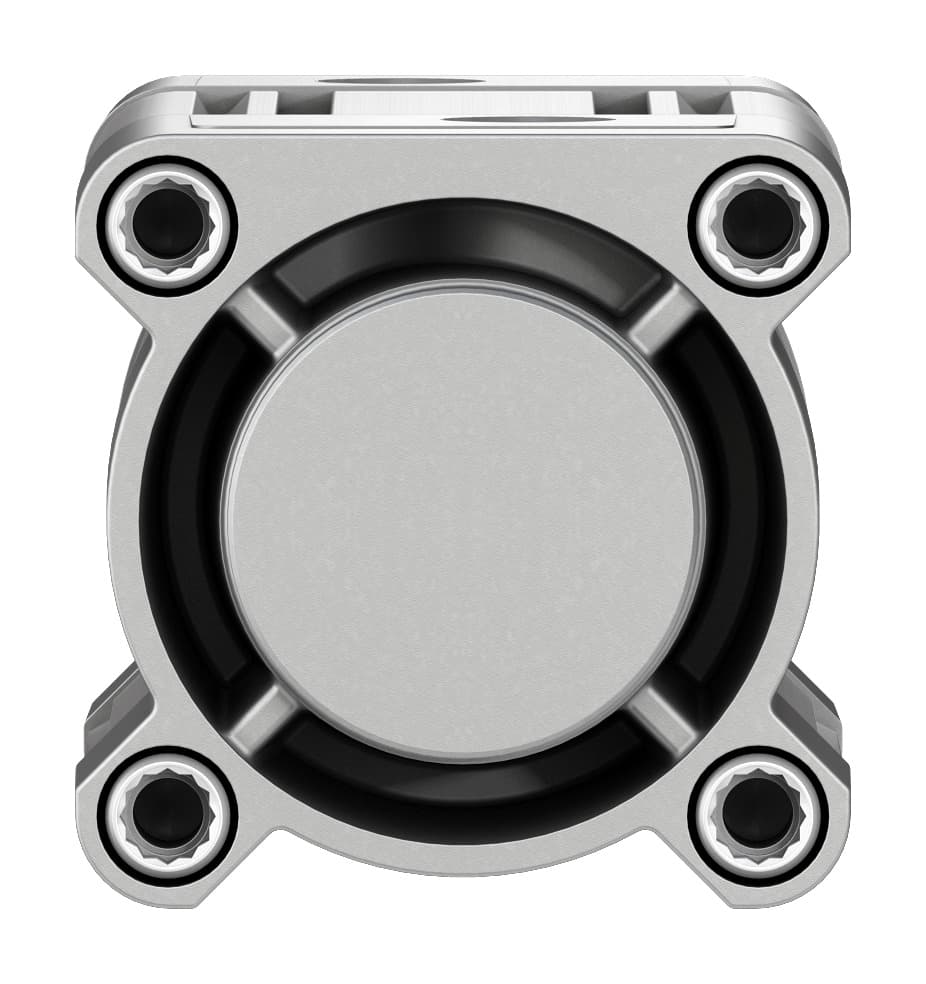

dsbc-63-40-ppsa-n3
Product ID:1488
Updated: 2026/4/4
Key Features
- 1Feature a 63mm piston diameter and 40mm stroke for versatile industrial use. 2、Utilize self-adjusting pneumatic cushioning for smooth operation and reduced wear. 3、Operate within 0.4 to 12 bar pressure for flexible application conditions. 4、Construct with die-cast aluminum, alloy piston, and steel rod for durability. 5、Comply with ISO 15552 standards and offer versatile mounting options.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 40mm | Piston diameter | 63 mm |
| Piston rod thread | M16x1.5 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00992970 |
| Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 1.3J | Cushioning length | 22mm |
| Theoretical force at 6 bar, retracting | 1682N | Theoretical force at 6 bar, advancing | 1870N |
| Moving mass at 0?mm stroke | 430g | Additional moving mass per 10?mm stroke | 25g |
| Basic weight with 0?mm stroke | 1740g | Additional weight per 10?mm stroke | 62g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G3/8 |
| Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
| Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
| Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
| Material of bearing | POM | Flange screws material | Steel, galvanized |
| Manufacturer ID | 1383633 |
