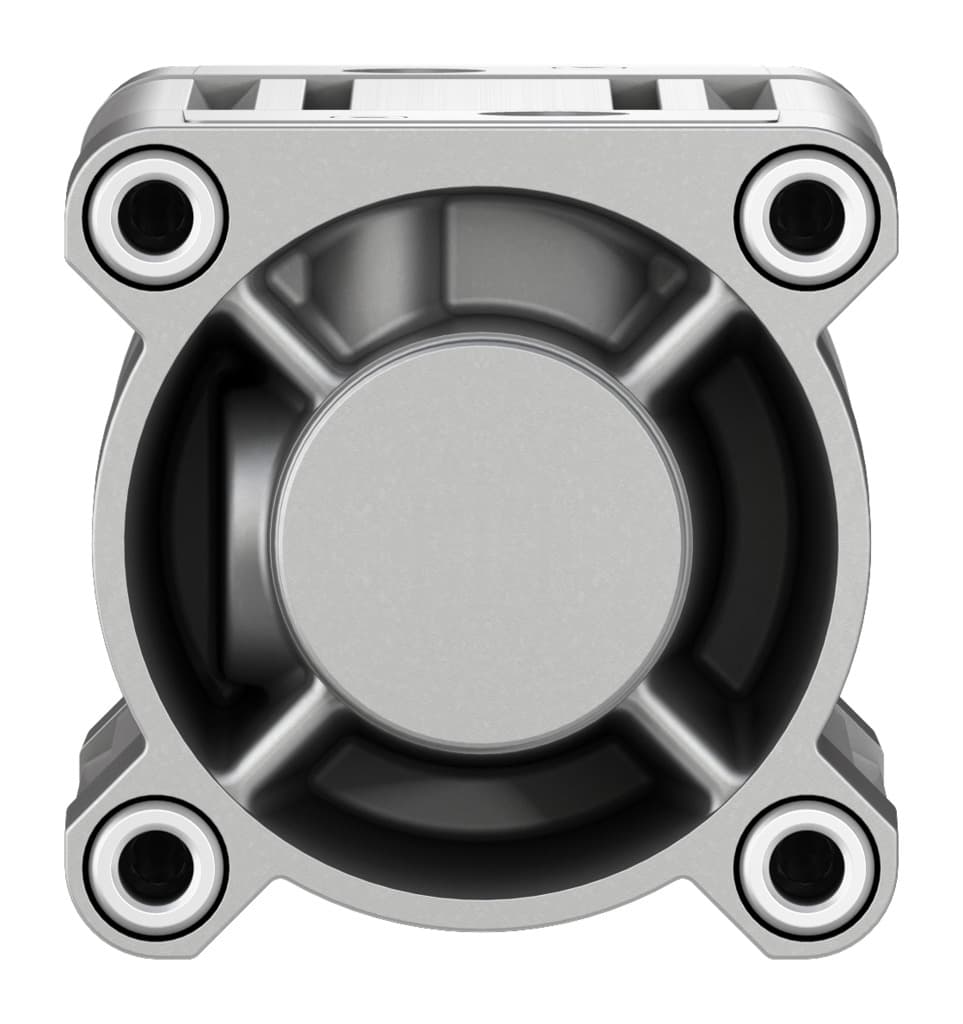

dsbc-80-80-ppva-n3
Product ID:1454
Updated: 2026/7/5
Key Features
- 1Achieve smooth stops with adjustable pneumatic cushioning on both ends.
- 2Ensure global compatibility by meeting the ISO 15552 standard.
- 3Utilize a robust 80mm piston diameter and M20x1.5 rod thread.
- 4Execute precise movements with an 80mm stroke length.
- 5Rely on durable die-cast aluminum and alloy steel construction.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 80mm | Piston diameter | 80 mm |
| Piston rod thread | M20x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 1.8J | Cushioning length | 31mm |
| Theoretical force at 6 bar, retracting | 2721N | Theoretical force at 6 bar, advancing | 3016N |
| Moving mass at 0?mm stroke | 810g | Additional moving mass per 10?mm stroke | 39g |
| Basic weight with 0?mm stroke | 2660g | Additional weight per 10?mm stroke | 92g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G3/8 |
| Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
| Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
| Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
| Material of bearing | POM | Flange screws material | Steel, galvanized |
| Manufacturer ID | 1383336 |
Specifications may be subject to change without notice
