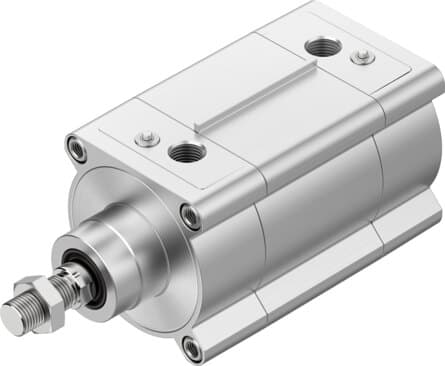

DSBF-C-100-50-PPVA-N3-R
Product ID:512312
Updated: 2026/5/29
Key Features
- 1Operating mode: Double acting
- 2Piston diameter: 100 mm
- 3Theoretical force at 6 bar, forward stroke: 4712 N
- 4Stroke: 50 mm
- 5Cushioning: Pneumatic cushioning, adjustable at both ends
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Eye screw material | Galvanized steel | Bearing material | POM |
| Nut material | High-alloy stainless steel | Cylinder barrel material | Anodized wrought aluminum alloy |
| Cushioning piston material | Polyoxymethylene (POM) | Cushioning seal material | TPE-U(PU) |
| Piston rod seal wiper material | TPE-U(PU) | Piston rod material | High-alloy stainless steel |
| Piston material | Wrought aluminum alloy | Piston seal material | TPE-U(PU) |
| Cover material | Coated die-cast aluminum | Material notes | RoHS compliant |
| Pneumatic connection | G1/2 | Mounting type | Via internal thread / With accessories |
| Additional weight per 10 m stroke | 106 g | Basic weight at 0 mm stroke | 4551 g |
| Product weight | 5081 g | Additional moving mass per 10 mm stroke | 39 g |
| Moving mass at 0 mm stroke | 1045 g | Moving mass | 1240 g |
| Theoretical force at 6 bar, forward stroke | 4712 N | Theoretical force at 6 bar, return stroke | 4418 N |
| Cushioning length | 31 mm | Impact energy at end positions | 2.5 J |
| Ambient temperature | -20 / 80 °C | Paint-wetting impairment substance (PWIS) conformity | VDMA24364-B2-L |
| Corrosion resistance class CRC | 3 - High corrosion resistance | Operating and pilot medium notes | Can be operated with lubricated medium (subsequently must always be operated with lubricated medium) |
| Operating medium | Compressed air conforming to ISO 8573-1:2010 [7:4:4] | Operating mode | Double acting |
| Operating pressure | 0.4 / 12 bar | Symbol | 00991235 |
| Position detection | Via proximity switch | Design feature | Piston diameter / Piston rod / Cylinder profile |
| Piston rod end | External thread | Compliant with standard | ISO 15552 |
| Mounting position | Optional | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Piston rod thread | M20x1.5 | Piston diameter | 100 mm |
| Stroke | 50 mm |
Specifications may be subject to change without notice
