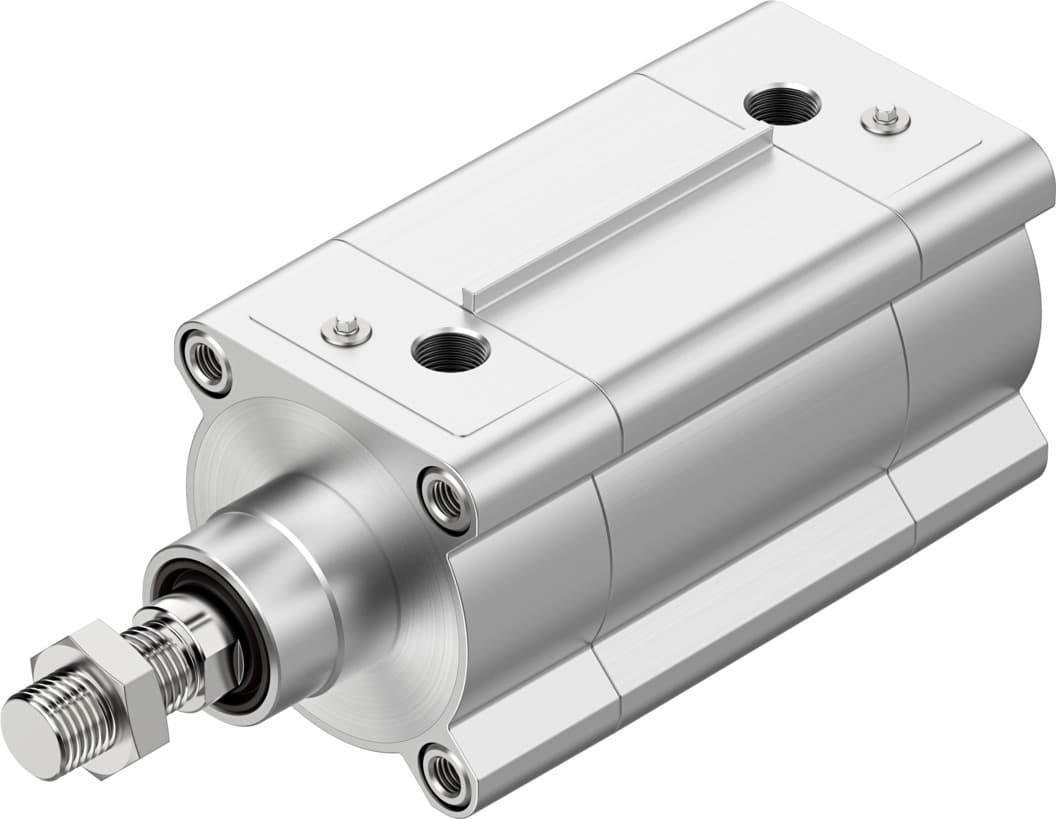

dsbf-c-80-125-ppva-n3-r
Product ID:5514
Updated: 2026/4/4
Key Features
- 1Ensure smooth motion with adjustable pneumatic cushioning at both ends. 2、Withstand harsh environments using CRC 3 corrosion resistance. 3、Enable versatile double-acting extension and retraction strokes. 4、Achieve precise positioning via integrated proximity switches. 5、Guarantee compatibility with ISO 15552 and VDMA standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 125mm | Piston diameter | 80 mm |
| Piston rod thread | M20x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Operating pressure | 0.4bar 12bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 3 - High corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 1.8J |
| Cushioning length | 31mm | Theoretical force at 6 bar, retracting | 2721N |
| Theoretical force at 6 bar, advancing | 3016N | Moving mass | 1288g |
| Moving mass at 0?mm stroke | 800g | Additional moving mass per 10?mm stroke | 39g |
| Product weight | 4319g | Basic weight with 0?mm stroke | 3131g |
| Additional weight per 10?mm stroke | 95g | Type of mounting | Optionally: With internal thread With accessories |
| Pneumatic connection | G3/8 | Note on materials | RoHS-compliant |
| Cover material | Die-cast aluminum, coated | Piston seal material | TPE-U(PU) |
| Material of piston | Wrought aluminum alloy | Piston rod material | High-alloy stainless steel |
| Piston rod wiper material | TPE-U(PU) | Buffer seal material | TPE-U(PU) |
| Cushion piston material | POM | Material of cylinder barrel | Wrought aluminum alloy, anodized |
| Nut material | High-alloy stainless steel | Material of bearing | POM |
| Flange screws material | Steel, galvanized | Manufacturer ID | 1778434 |
Specifications may be subject to change without notice
