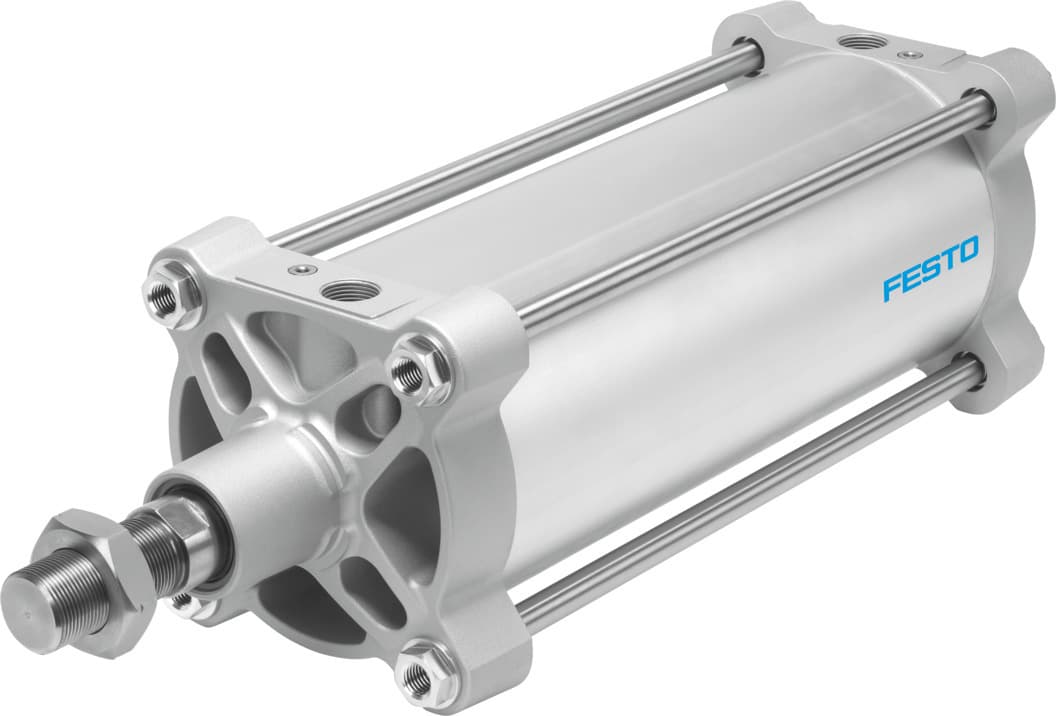

dsbg-160-50-ppva-n3
Product ID:7834
Updated: 2026/4/5
Key Features
- 1Feature adjustable pneumatic cushioning on both ends for smooth motion control. 2、Conform to ISO 15552 standard for guaranteed reliability and compatibility. 3、Handle operating pressures from 0.6 to 10 bar for versatile applications. 4、Construct with durable materials like die-cast aluminum and high-alloy steel. 5、Enable precise control with integrated proximity switch position detection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 50mm | Piston diameter | 160 mm |
| Piston rod thread | M36x2 | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Tie rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Variants | Piston rod at one end | Operating pressure | 0.6bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 3.3J | Cushioning length | 48mm |
| Theoretical force at 6 bar, retracting | 11310N | Theoretical force at 6 bar, advancing | 12064N |
| Moving mass | 4777g | Moving mass at 0?mm stroke | 4292g |
| Additional moving mass per 10?mm stroke | 97g | Product weight | 12791g |
| Basic weight with 0?mm stroke | 11751g | Additional weight per 10?mm stroke | 208g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G3/4 |
| Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
| Piston seal material | NBR | Material of piston | Cast aluminum |
| Piston rod material | High-alloy steel | Piston rod wiper material | NBR |
| Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
| Material of bearing | Metal polymer compound | Collar nut material | Steel, galvanized |
| Tie rod material | High-alloy steel | Manufacturer ID | 2029464 |
Specifications may be subject to change without notice
