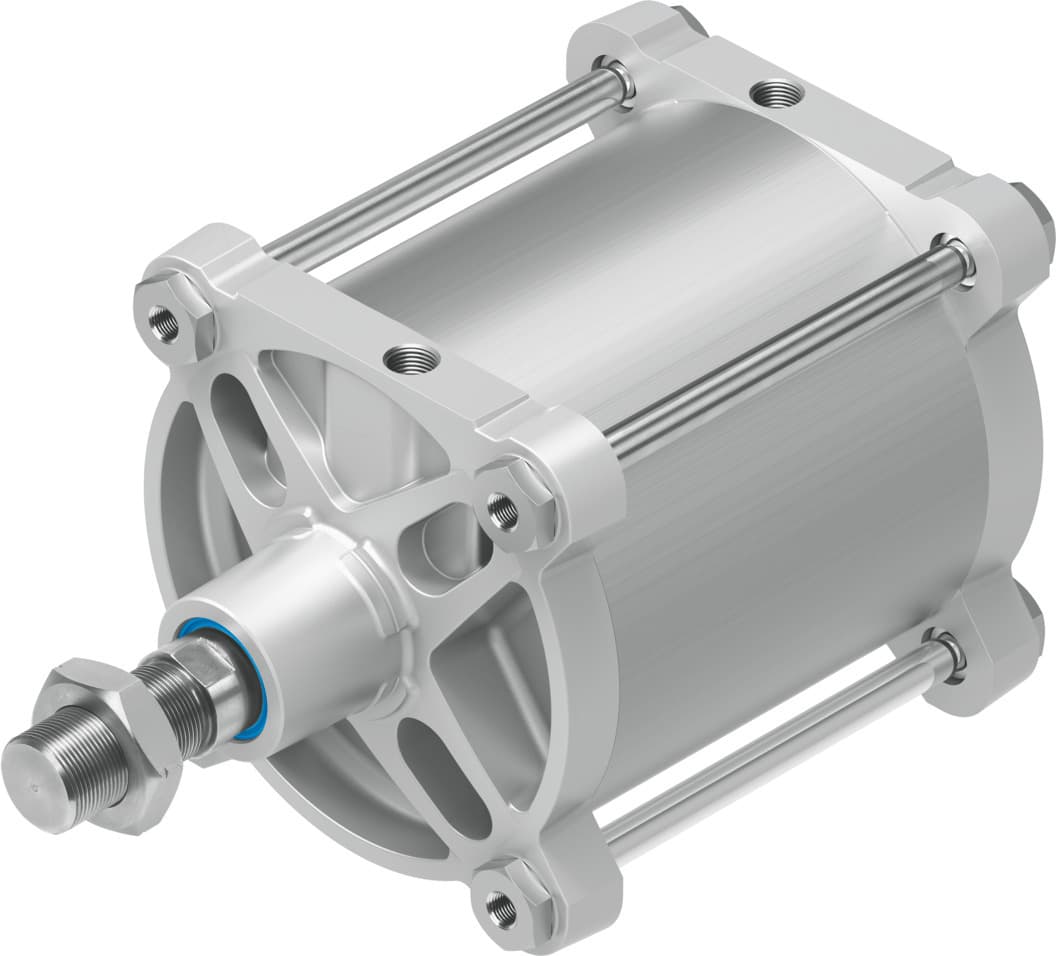

dsbg-250- -p-n3
Product ID:8033
Updated: 2026/4/5
Key Features
- 1Feature a robust 250mm stroke for demanding industrial applications. 2、Ensure smooth operation with elastic cushioning rings at both ends. 3、Conform to ISO 15552 for wide pneumatic system compatibility. 4、Provide flexible double-acting extension and retraction strokes. 5、Offer moderate corrosion resistance (CRC 2) for stressful environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 2250mm | Piston diameter | 250 mm |
| Piston rod thread | M42x2 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Piston rod end | External thread |
| Structural design | Piston Piston rod Tie rod Cylinder barrel | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 0.6bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 7.2J | Theoretical force at 6 bar, retracting | 28274N |
| Theoretical force at 6 bar, advancing | 29452N | Moving mass at 0?mm stroke | 9978g |
| Additional moving mass per 10?mm stroke | 157g | Basic weight with 0?mm stroke | 29313g |
| Additional weight per 10?mm stroke | 384g | Type of mounting | Optionally: With internal thread With accessories |
| Pneumatic connection | G1 | Note on materials | RoHS-compliant |
| Cover material | Die-cast aluminum, coated | Piston seal material | NBR |
| Material of piston | Cast aluminum | Piston rod material | High-alloy steel |
| Piston rod wiper material | NBR | Buffer seal material | TPE-U(PU) |
| Cushion piston material | POM | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Nut material | Steel, galvanized | Material of bearing | Metal polymer compound |
| Collar nut material | Steel, galvanized | Tie rod material | High-alloy steel |
| Manufacturer ID | 2865145 |
Specifications may be subject to change without notice
