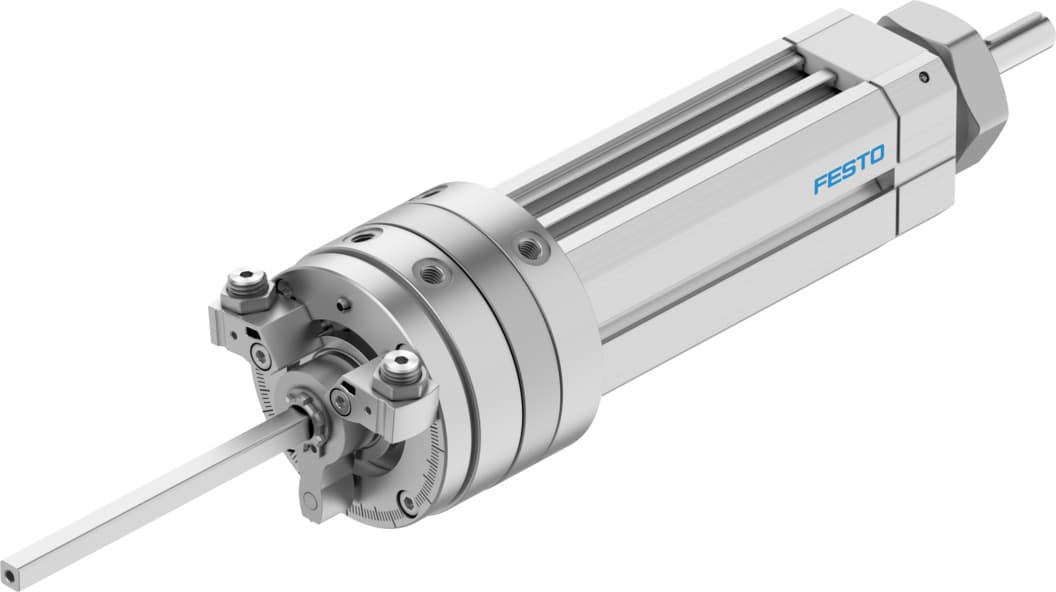

dsl-16- -270-p-a-s2-b
Product ID:12240
Updated: 2026/7/15
Key Features
- 1Achieve precise 0-270° swivel angle control for flexible positioning.
- 2Utilize double-acting operation for efficient extension and retraction strokes.
- 3Reduce shock with elastic cushioning for smoother operation and longer life.
- 4Install flexibly using clamped T-slot or male thread mounting options.
- 5Operate reliably with compressed air per ISO 8573-1:2010 standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Adjustment range of swivel angle | 0deg 270deg | Stroke | 10mm 160mm |
| Piston diameter | 16 mm | Swivel angle | 0deg 272deg |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Precision adjustment | -6deg | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991268 | Variants | Through piston rod |
| Protection against torsion/guide | With plain-bearing guide | Operating pressure | 2.5bar 8bar |
| Max. impact velocity | 0.5m/s | Max. swivel frequency at 6?bar | 2Hz |
| Swivel angle backlash | 2deg | Repetition accuracy | 1deg |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C 60°C | Dynamic load torque | 0.1Nm |
| Theoretical force at 6 bar, retracting | 73.5N | Theoretical force at 6 bar, advancing | 102.5N |
| Theoretical torque at 6 bar | 1.25Nm | Permissible mass moment of inertia | 3.5E-5kgm2 |
| Product weight | 650g | Basic weight with 0?mm stroke | 650g |
| Additional weight per 10?mm stroke | 33g | Type of mounting | Optionally: Clamped in T slot With external thread |
| Pneumatic connection | M5 | Cover material | Wrought aluminum alloy Anodized |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy Smooth anodized |
| Piston rod material | Tempered steel | Manufacturer ID | 556420 |
Specifications may be subject to change without notice
