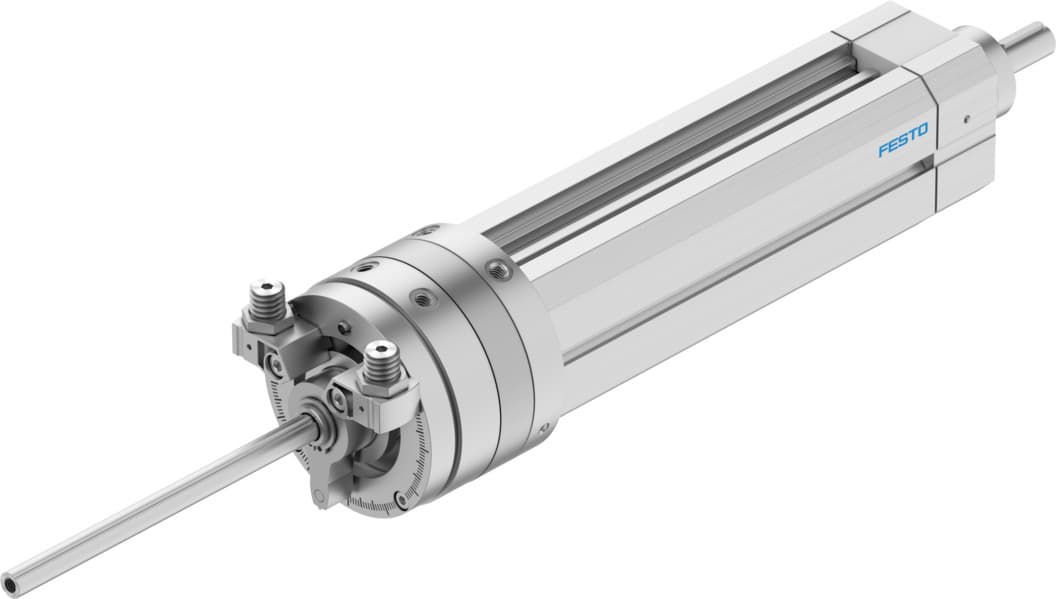

dsl-20- -270-p-a-s20-kf-b
Product ID:12394
Updated: 2026/4/4
Key Features
- 1Achieve precise motion control with a 20mm piston and 25mm stroke. 2、Gain extensive flexibility with a wide 270° swivel angle. 3、Reduce wear using elastic cushioning at both ends. 4、Ensure smooth movement with a recirculating ball bearing guide. 5、Enjoy free shipping and lifetime technical support.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Adjustment range of swivel angle | 0deg 270deg | Stroke | 10mm 100mm |
| Piston diameter | 20 mm | Swivel angle | 0deg 272deg |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Precision adjustment | -6deg | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991269 | Variants | Through, hollow piston rod |
| Protection against torsion/guide | Guided on ball bearings | Operating pressure | 2.5bar 8bar |
| Max. impact velocity | 0.5m/s | Max. swivel frequency at 6?bar | 2Hz |
| Swivel angle backlash | 0.05deg | Repetition accuracy | 1deg |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C 60°C | Dynamic load torque | 0.35Nm |
| Theoretical force at 6 bar, retracting | 120.5N | Theoretical force at 6 bar, advancing | 158N |
| Theoretical torque at 6 bar | 2.5Nm | Permissible mass moment of inertia | 7.0E-5kgm2 |
| Product weight | 1140g | Basic weight with 0?mm stroke | 1140g |
| Additional weight per 10?mm stroke | 52g | Type of mounting | Optionally: Clamped in T slot With external thread |
| Pneumatic connection | M5 | Cover material | Wrought aluminum alloy |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
| Piston rod material | Tempered steel | Manufacturer ID | 556651 |
Specifications may be subject to change without notice
