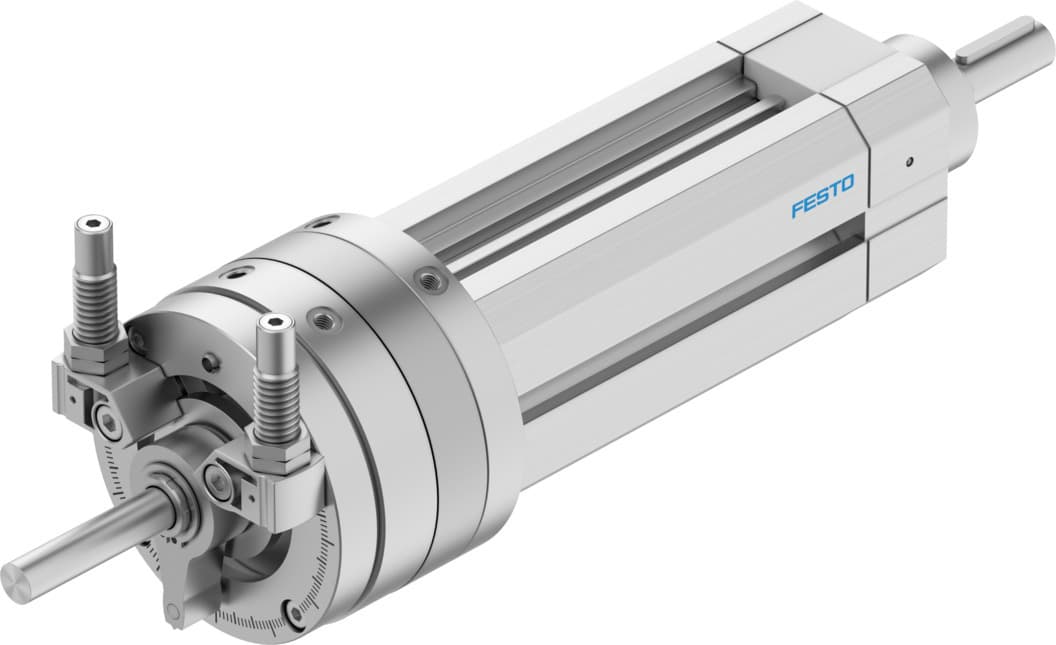

dsl-25-25-270-cc-a-s2-kf-b

Product ID:12397

Updated: 2026/4/4

Key Features

1Achieve precise motion with 25mm stroke and 270° swivel angle. 2、Extend and retract reliably using the double-acting design. 3、Reduce shock and wear with elastic cushioning at both ends. 4、Install flexibly by clamping in T-slots with an external thread. 5、Enable independent rotary and linear actuation for proximity sensing.

Detailed engineering parameters

Parameter	Value	Parameter	Value
Cushioning angle	10deg	Adjustment range of swivel angle	0deg 246deg
Stroke	25mm	Piston diameter	25 mm
Swivel angle	0deg 246deg	Cushioning	Pneumatic shock absorber at both ends Elastic cushioning rings/pads at both ends
Mounting position	Any	Precision adjustment	-3deg
Mode of operation	Double-acting	Structural design	Rotary vane
Position sensing	For proximity sensor	Symbol	00991268
Variants	Through piston rod	Protection against torsion/guide	Guided on ball bearings
Operating pressure	2.5bar 8bar	Max. impact velocity	0.5m/s
Max. swivel frequency at 6?bar	1Hz	Swivel angle backlash	0.05deg
Repetition accuracy	0.1deg	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B2-L	Ambient temperature	-10°C 60°C
Dynamic load torque	0.7Nm	Theoretical force at 6 bar, retracting	173.5N
Theoretical force at 6 bar, advancing	248N	Theoretical torque at 6 bar	5Nm
Permissible mass moment of inertia	0.0016kgm2	Product weight	1750g
Basic weight with 0?mm stroke	1750g	Additional weight per 10?mm stroke	67g
Type of mounting	Optionally: Clamped in T slot With external thread	Pneumatic connection	M5
Cover material	Wrought aluminum alloy Anodized	Seals material	TPE-U(PU)
Housing material	Wrought aluminum alloy Smooth anodized	Piston rod material	Tempered steel
Manufacturer ID	556655

Specifications may be subject to change without notice
