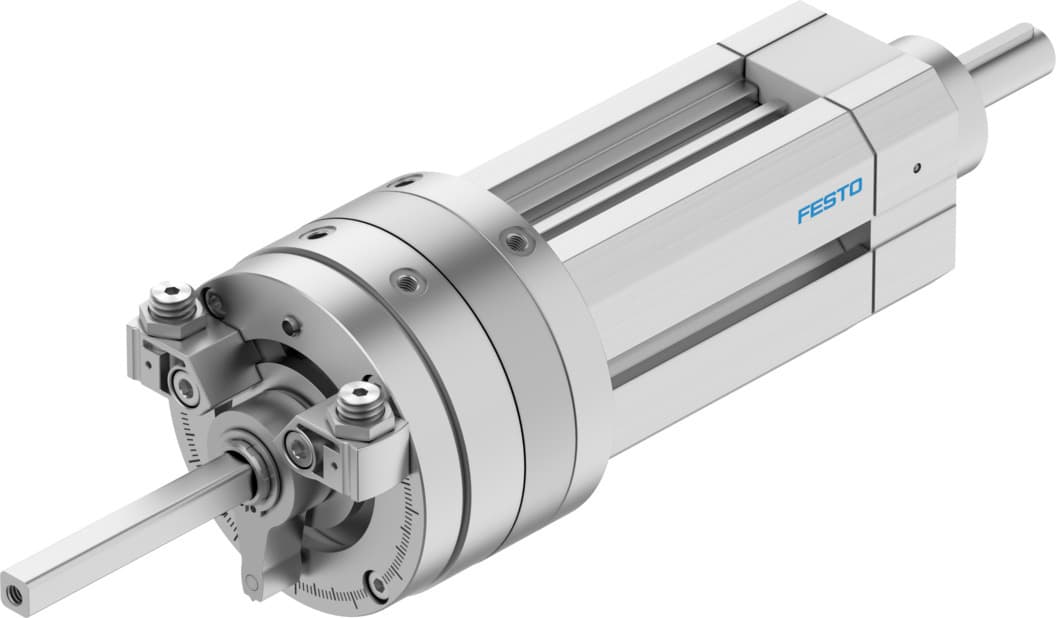

dsl-25- -270-p-a-s20-b
Product ID:12290
Updated: 2026/7/15
Key Features
- 1Achieve precise 25mm stroke and 270° swivel motion control.
- 2Reduce wear with elastic cushioning at both actuator ends.
- 3Ensure stable operation using a reliable plain-bearing guide.
- 4Enable versatile double-acting extension and retraction cycles.
- 5Handle demanding applications with +8 bar compressed air.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Adjustment range of swivel angle | 0deg 270deg | Stroke | 10mm 160mm |
| Piston diameter | 25 mm | Swivel angle | 0deg 272deg |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Precision adjustment | -6deg | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991269 | Variants | Through, hollow piston rod |
| Protection against torsion/guide | With plain-bearing guide | Operating pressure | 2.5bar 8bar |
| Max. impact velocity | 0.5m/s | Max. swivel frequency at 6?bar | 2Hz |
| Swivel angle backlash | 2deg | Repetition accuracy | 1deg |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C 60°C | Dynamic load torque | 0.45Nm |
| Theoretical force at 6 bar, retracting | 173.5N | Theoretical force at 6 bar, advancing | 246N |
| Theoretical torque at 6 bar | 5Nm | Permissible mass moment of inertia | 1.1E-4kgm2 |
| Product weight | 1500g | Basic weight with 0?mm stroke | 1500g |
| Additional weight per 10?mm stroke | 67g | Type of mounting | Optionally: Clamped in T slot With external thread |
| Pneumatic connection | M5 | Cover material | Wrought aluminum alloy Anodized |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy Smooth anodized |
| Piston rod material | Tempered steel | Manufacturer ID | 556495 |
Specifications may be subject to change without notice
