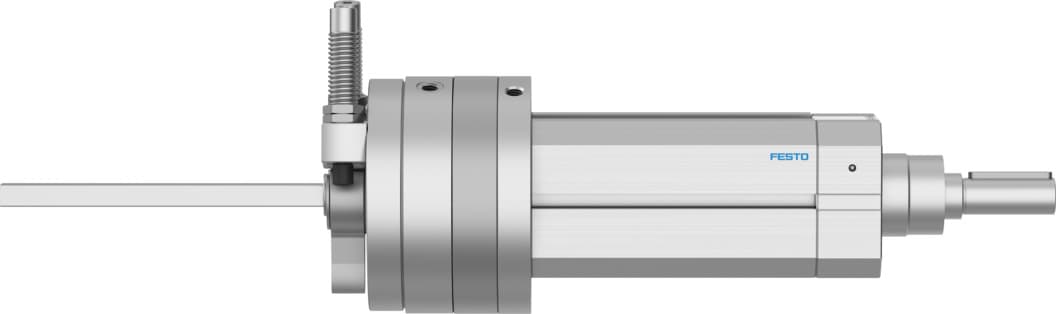

dsl-40-25-270-cc-a-s20-b
Product ID:12319
Updated: 2026/4/4
Key Features
- 1Achieve precise motion control with a 40mm piston diameter and 25mm stroke. 2、Enable extensive 270° rotational movement for complex tasks. 3、Reduce impact stress using integrated shock absorbers at both ends. 4、Mount flexibly via clamped T-slot or male thread for easy integration. 5、Operate robustly across a wide 2.5 to 8 bar pressure range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cushioning angle | 16deg | Adjustment range of swivel angle | 0deg 240deg |
| Stroke | 25mm | Piston diameter | 40 mm |
| Swivel angle | 0deg 240deg | Cushioning | Pneumatic shock absorber at both ends Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Precision adjustment | -3deg |
| Mode of operation | Double-acting | Structural design | Rotary vane |
| Position sensing | For proximity sensor | Symbol | 00991269 |
| Variants | Through, hollow piston rod | Protection against torsion/guide | With plain-bearing guide |
| Operating pressure | 2.5bar 8bar | Max. impact velocity | 0.5m/s |
| Max. swivel frequency at 6?bar | 0.7Hz | Swivel angle backlash | 2deg |
| Repetition accuracy | 0.1deg | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -10°C 60°C |
| Dynamic load torque | 1.1Nm | Theoretical force at 6 bar, retracting | 495N |
| Theoretical force at 6 bar, advancing | 660N | Theoretical torque at 6 bar | 20Nm |
| Permissible mass moment of inertia | 0.004kgm2 | Product weight | 5200g |
| Basic weight with 0?mm stroke | 5200g | Additional weight per 10?mm stroke | 170g |
| Type of mounting | Optionally: Clamped in T slot With external thread | Pneumatic connection | G1/8 |
| Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy Smooth anodized | Piston rod material | Tempered steel |
| Manufacturer ID | 556538 |
Specifications may be subject to change without notice
