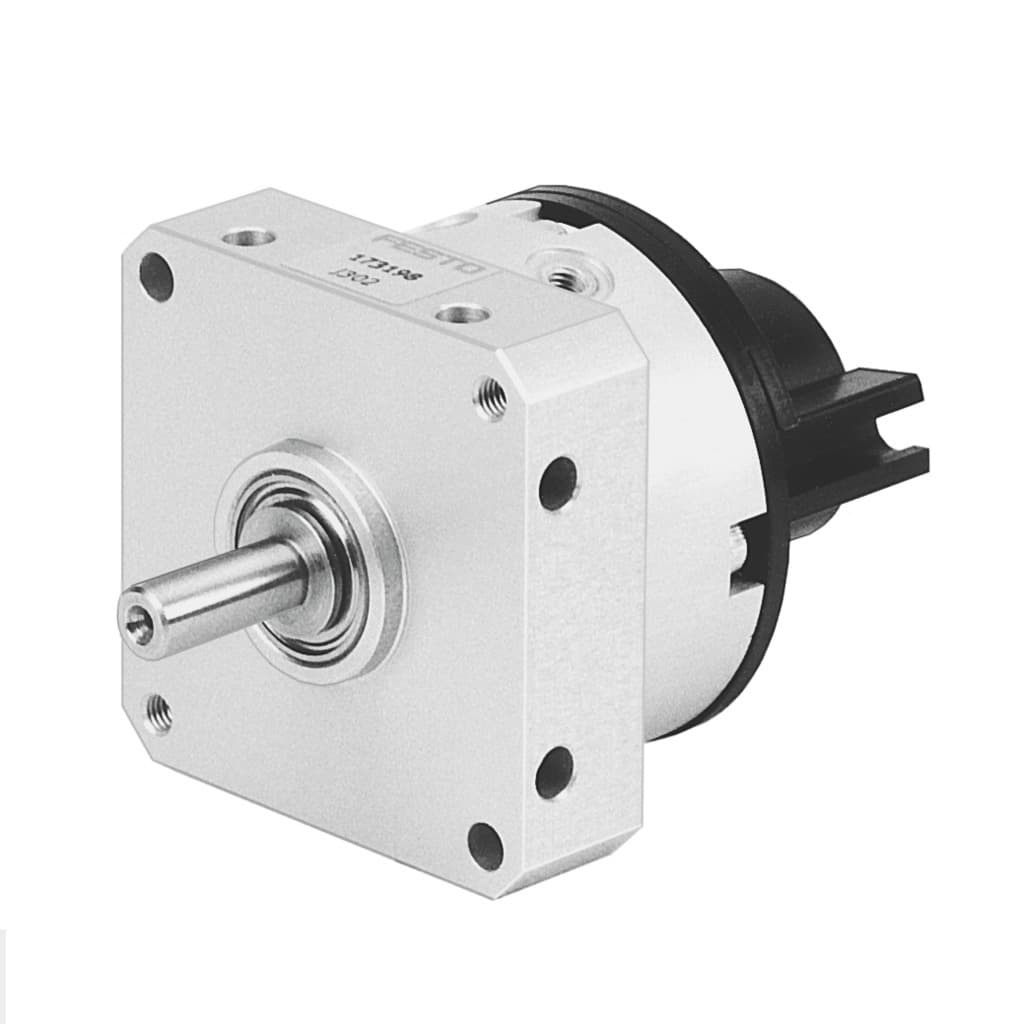

dsm-10-180-p-a
Product ID:5170
Updated: 2026/4/4
Key Features
- 1Achieve precise 0-180° swivel control for versatile positioning. 2、Reduce wear with integrated elastic cushioning rings at both ends. 3、Ensure reliable operation in demanding manufacturing and process automation. 4、Simplify installation with adjustable mounting positions for design flexibility. 5、Integrate seamlessly with other Festo pneumatic and electrical components.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 10 | Cushioning angle | 0.5deg |
| Swivel angle | 0deg 180deg | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 2.5bar 8bar |
| Max. swivel frequency at 6?bar | 3Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | 0°C 60°C |
| Theoretical torque at 6 bar | 0.85Nm | Permissible mass moment of inertia | 0.0026kgm2 |
| Product weight | 149g | Type of mounting | With internal thread |
| Pneumatic connection | M3 | Note on materials | RoHS-compliant |
| Drive shaft material | High-alloy stainless steel | Seals material | TPE-U(PU) |
| Housing material | Aluminum Anodized | Manufacturer ID | 173200 |
Specifications may be subject to change without notice
