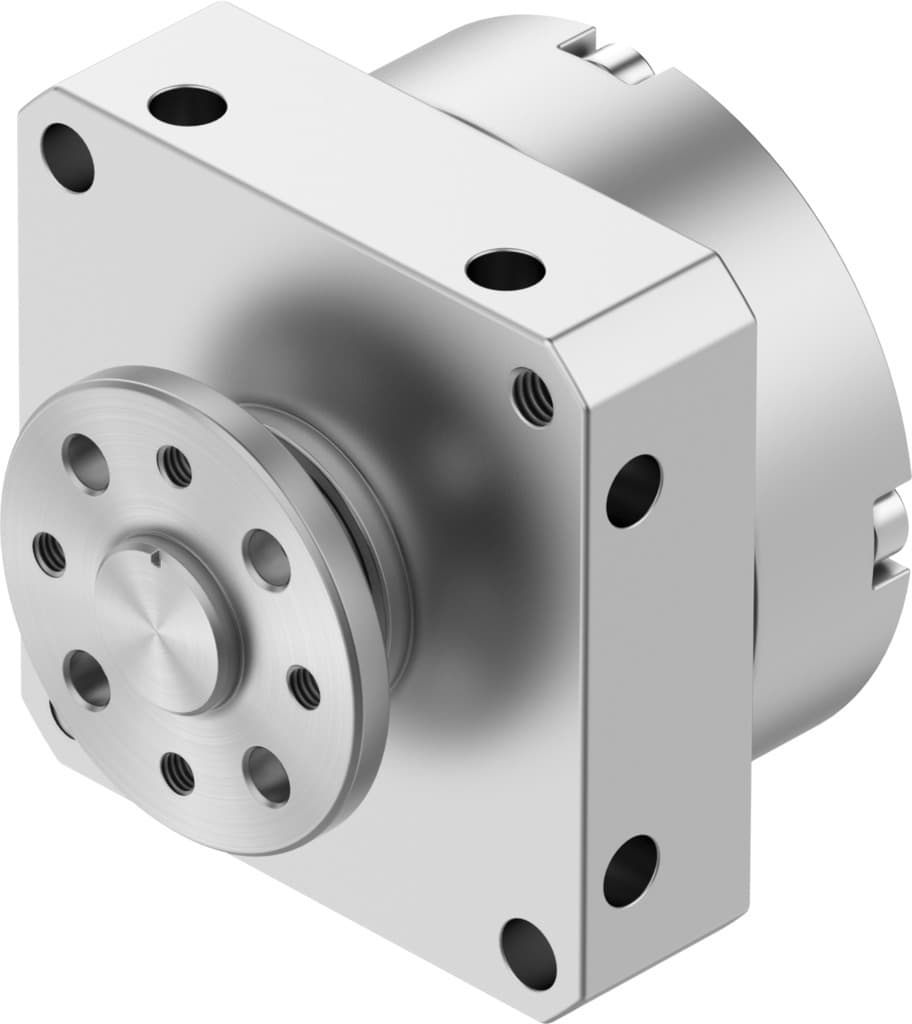

dsm-10-180-p-fw
Product ID:5843
Updated: 2026/4/3
Key Features
- 1Achieve versatile 0-180° positioning for diverse automation tasks. 2、Reduce wear with elastic cushioning at both ends for smooth operation. 3、Operate reliably within a broad 2.5 to 8 bar pressure range. 4、Deliver efficient performance with a max swivel frequency of 3 Hz. 5、Ensure durability with high-alloy steel shafts and TPE-U seals.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 10 | Cushioning angle | 0.5deg |
| Swivel angle | 0deg 180deg | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | None |
| Symbol | 00991265 | Operating pressure | 2.5bar 8bar |
| Max. swivel frequency at 6?bar | 3Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | 0°C 60°C |
| Theoretical torque at 6 bar | 0.85Nm | Permissible mass moment of inertia | 0.0026kgm2 |
| Product weight | 150g | Type of mounting | With internal thread |
| Pneumatic connection | M3 | Note on materials | RoHS-compliant |
| Drive shaft material | High-alloy stainless steel | Seals material | TPE-U(PU) |
| Housing material | Aluminum Anodized | Manufacturer ID | 185941 |
