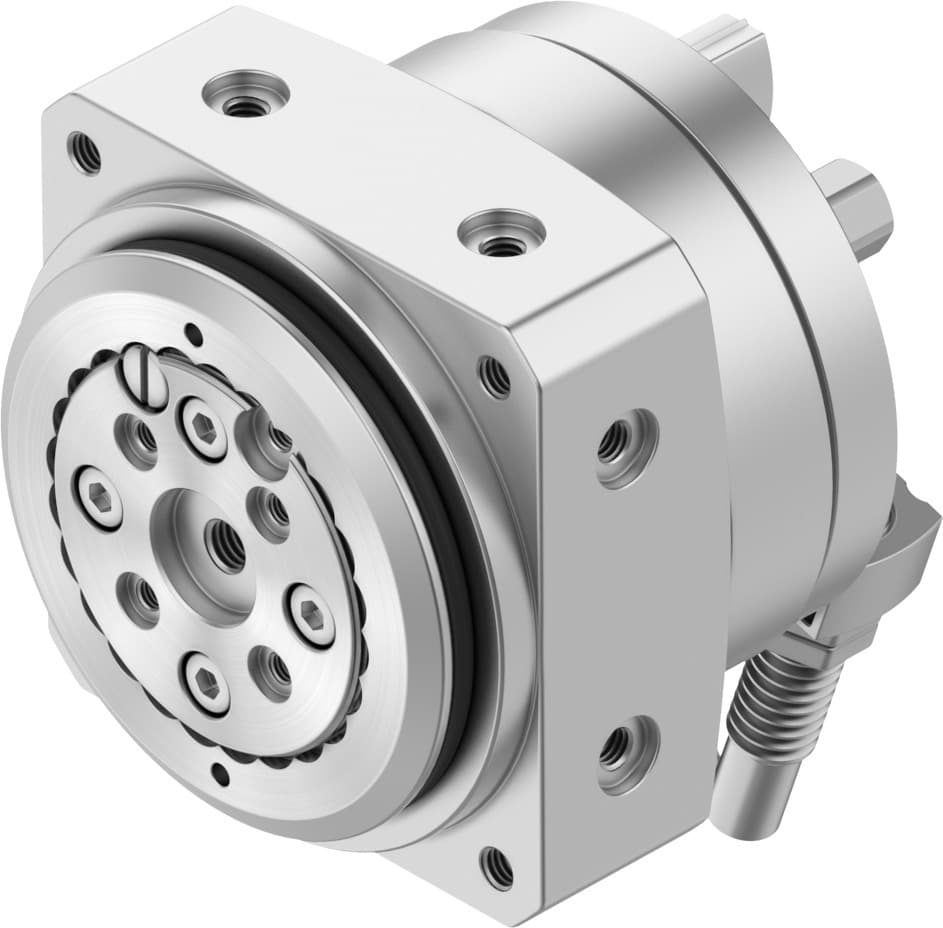

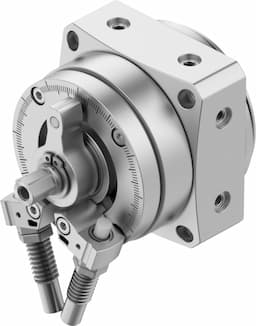

dsm-12-270-cc-hd-a-b
Product ID:1373
Updated: 2026/4/4
Key Features
- 1Deliver high torque of 1.25 Nm for demanding applications. 2、Adjust swivel angle from 0 to 246 degrees flexibly. 3、Ensure durability with a robust heavy-duty bearing construction. 4、Reduce vibration via integrated shock absorbers at both ends. 5、Mount easily using female threads or pneumatic connections.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Cushioning angle | 15deg |
| Adjustment range of swivel angle | 0deg 246deg | Swivel angle | 0deg 246deg |
| Cushioning | Pneumatic shock absorber at both ends | Mounting position | Any |
| Precision adjustment | -3deg | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 3bar 10bar |
| Max. swivel frequency at 6?bar | 1Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Max. axial force | 180N |
| Max. radial force | 200N | Theoretical torque at 6 bar | 1.25Nm |
| Permissible mass moment of inertia | 0.008kgm2 | Product weight | 420g |
| Type of mounting | With internal thread | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 1369122 |
Specifications may be subject to change without notice
