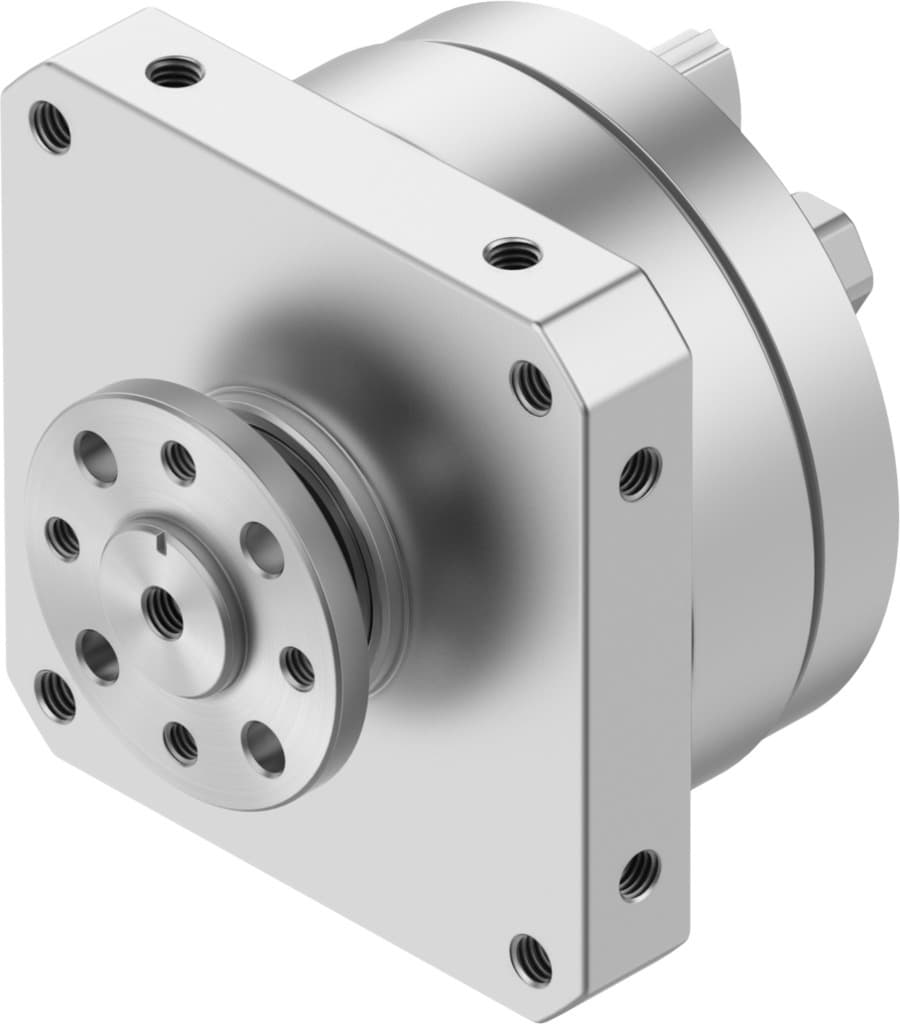

dsm-16-270-fw-a-b
Product ID:11537
Updated: 2026/4/3
Key Features
- 1Adjust rotation from 0 to 270 degrees for precise application control. 2、Utilize flexible cushioning rings to smooth operation and reduce shock. 3、Operate double-acting for efficient extension and retraction movements. 4、Ensure accurate positioning with integrated position sensing. 5、Deploy across systems with 1.8-10 bar operating pressure compatibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 16 | Swivel angle | 0deg 270deg |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 1.8bar 10bar |
| Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 60°C |
| Max. axial force | 30N | Max. radial force | 75N |
| Theoretical torque at 6 bar | 2.5Nm | Product weight | 450g |
| Type of mounting | With internal thread | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 547597 |
