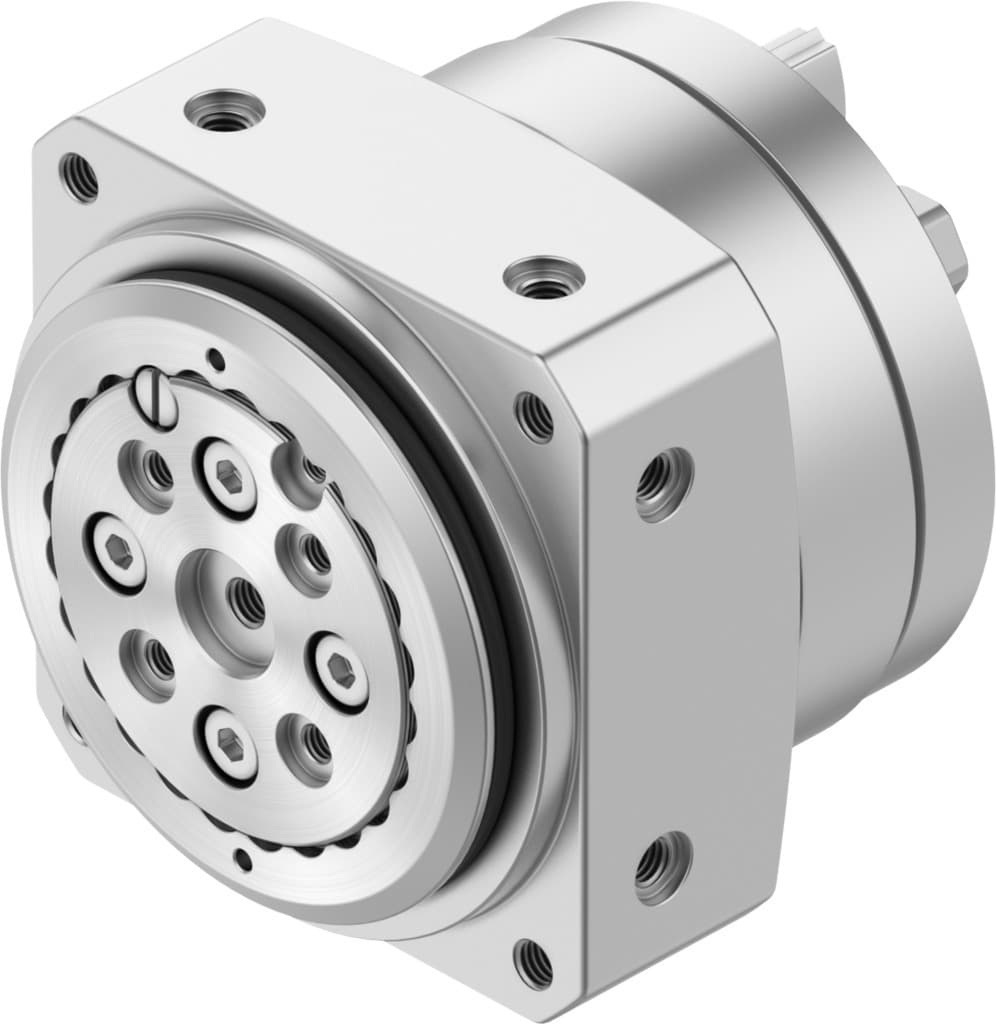

dsm-16-270-hd-a-b
Product ID:1362
Updated: 2026/7/5
Key Features
- 1Achieve a 0-246° swivel angle for versatile positioning.
- 2Utilize elastic cushioning rings to ensure smooth operation and reduce shock.
- 3Control precisely with double-acting operation using up to 10 bar air.
- 4Operate at up to 1.5 Hz frequency for high-speed, demanding cycles.
- 5Ensure durability with RoHS-compliant nickel-plated steel and TPE-U seals.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 16 | Swivel angle | 0deg 270deg |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 3bar 10bar |
| Max. swivel frequency at 6?bar | 1.5Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Max. axial force | 290N |
| Max. radial force | 300N | Theoretical torque at 6 bar | 2.5Nm |
| Product weight | 625g | Type of mounting | With internal thread |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy | Manufacturer ID | 1369111 |
