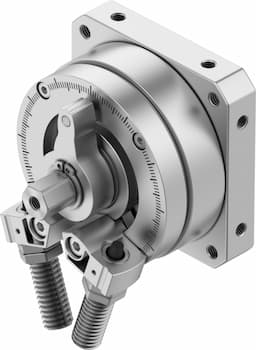

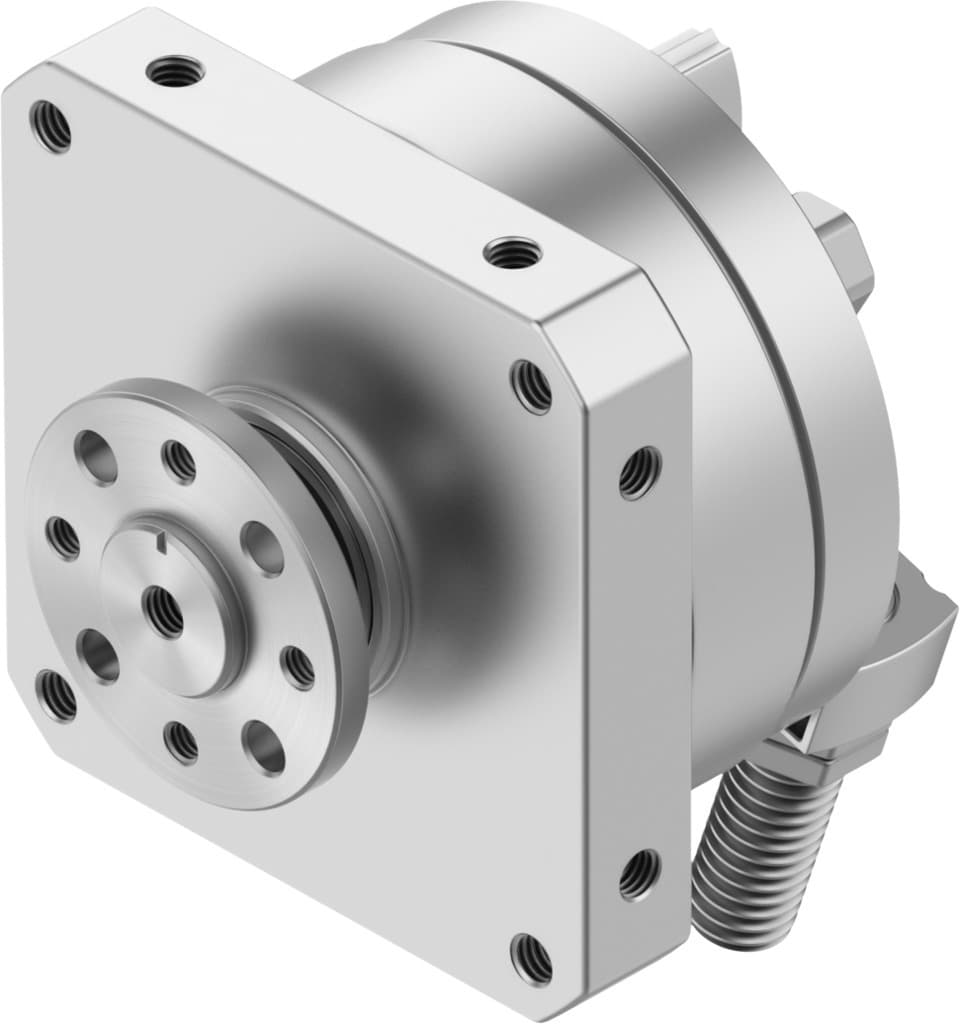

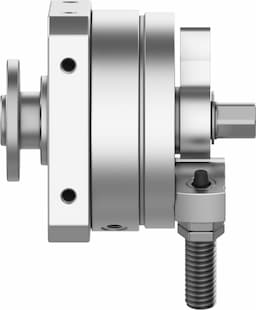

dsm-16-270-p1-fw-a-b
Product ID:13219
Updated: 2026/4/4
Key Features
- 1Achieve precise 270° rotation with an adjustable range. 2、Utilize elastic cushioning at both ends for smooth operation. 3、Adjust the swivel angle infinitely from 0 to 246 degrees. 4、Rely on robust steel drive shaft and nickel-plated construction. 5、Comply with ISO 8573-1:2010 and VDMA24364-B1/B2-L standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 16 | Cushioning angle | 9deg |
| Adjustment range of swivel angle | 0deg 246deg | Swivel angle | 0deg 246deg |
| Cushioning | Elastic cushioning rings/pads at both ends with fixed stop | Mounting position | Any |
| Precision adjustment | -6deg | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 1.8bar 10bar |
| Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Max. axial force | 30N |
| Max. radial force | 75N | Theoretical torque at 6 bar | 2.5Nm |
| Permissible mass moment of inertia | 0.03kgm2 | Product weight | 515g |
| Type of mounting | With internal thread | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 566206 |
Specifications may be subject to change without notice
