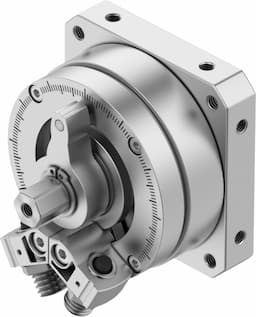

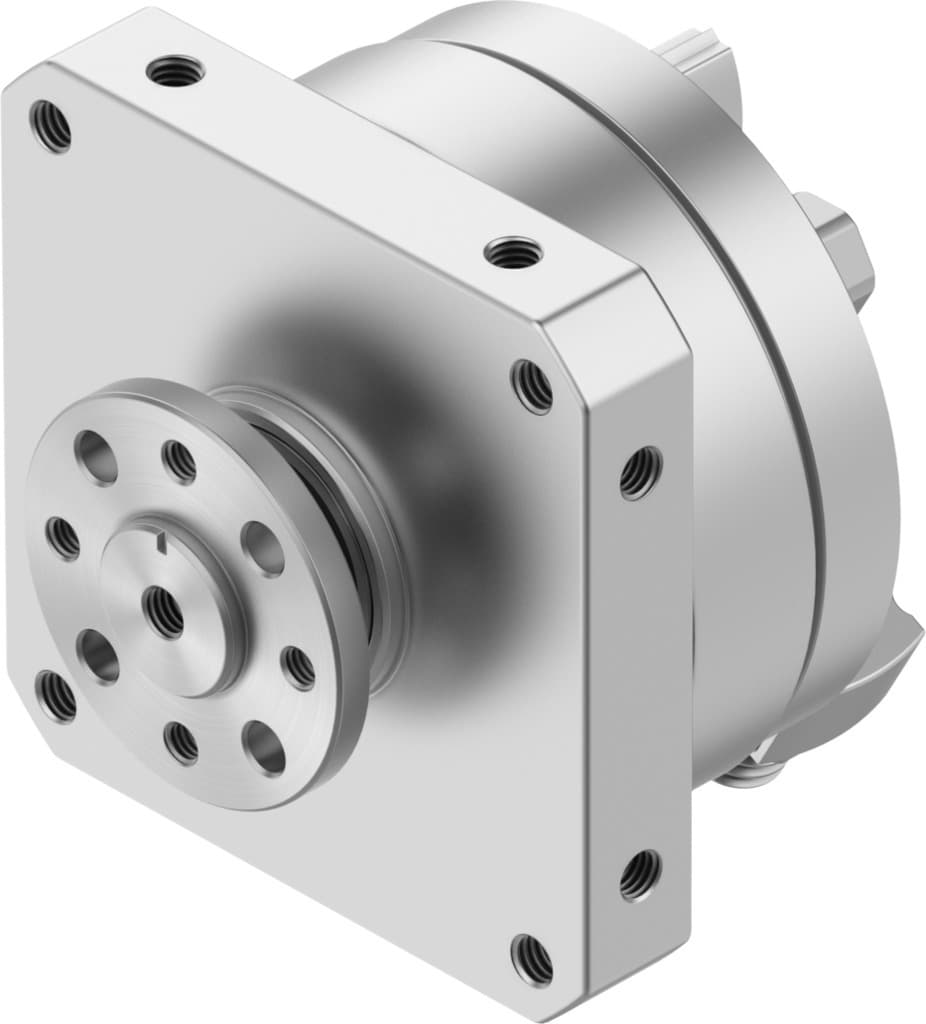

dsm-16-270-p-fw-a-b
Product ID:11516
Updated: 2026/7/13
Key Features
- 1Adjust rotation precisely from 0 to 270 degrees for exact positioning.
- 2Utilize flexible cushioning at both ends for smooth operation and durability.
- 3Operate efficiently in both directions with its double-acting design.
- 4Enable accurate position detection using compatible proximity sensors.
- 5Work within a wide 1.8 to 10 bar pressure range for versatility.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 16 | Cushioning angle | 1.4deg |
| Adjustment range of swivel angle | 0deg 270deg | Swivel angle | 0deg 270deg |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Precision adjustment | -6deg | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 1.8bar 10bar |
| Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 60°C |
| Max. axial force | 30N | Max. radial force | 75N |
| Theoretical torque at 6 bar | 2.5Nm | Permissible mass moment of inertia | 0.01kgm2 |
| Product weight | 510g | Type of mounting | With internal thread |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy | Manufacturer ID | 547575 |
Specifications may be subject to change without notice
