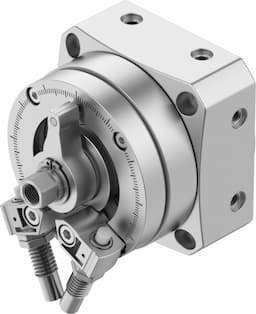

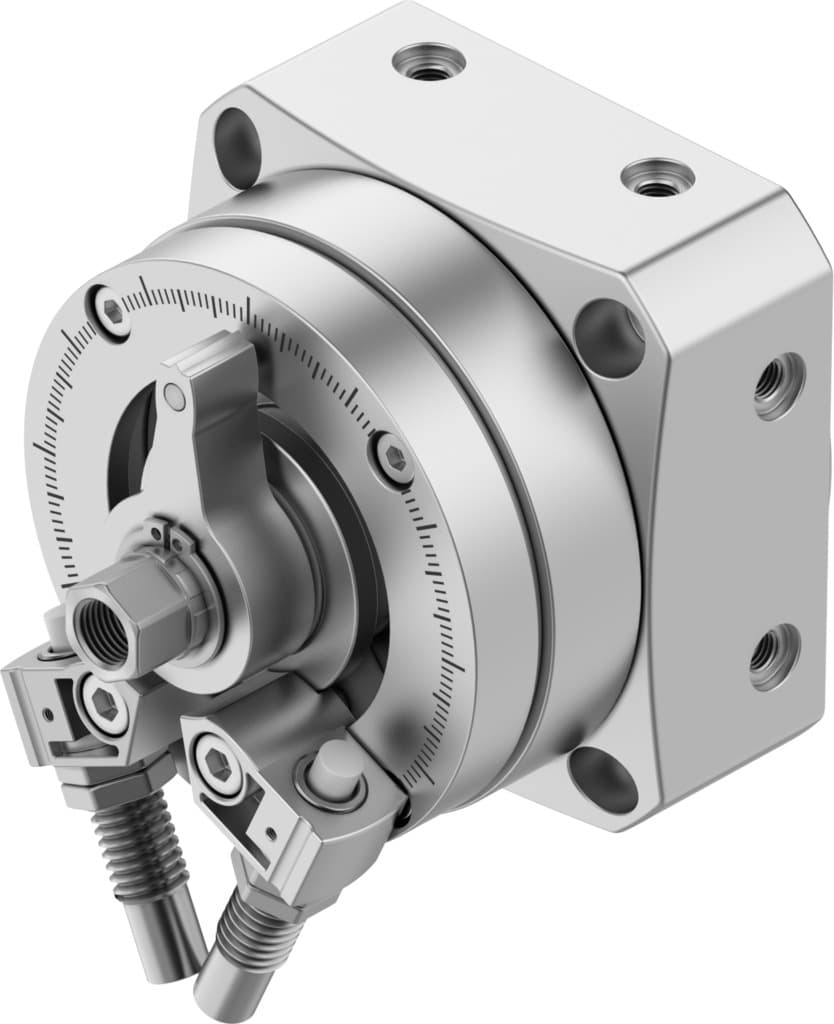

dsm-25-270-cc-hd-a-b
Product ID:1375
Updated: 2026/7/5
Key Features
- 1Adjust rotation from 0 to 246 degrees for precise control.
- 2Utilize shock absorbers at both ends for smooth operation.
- 3Operate double-acting for forward and reverse movements.
- 4Ensure compatibility with ISO 8573-1 compressed air systems.
- 5Rely on aluminum housing and steel shaft for durability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 25 | Cushioning angle | 10deg |
| Adjustment range of swivel angle | 0deg 246deg | Swivel angle | 0deg 246deg |
| Cushioning | Pneumatic shock absorber at both ends | Mounting position | Any |
| Precision adjustment | -3deg | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 2bar 10bar |
| Max. swivel frequency at 6?bar | 1Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Max. axial force | 350N |
| Max. radial force | 450N | Theoretical torque at 6 bar | 5Nm |
| Permissible mass moment of inertia | 0.03kgm2 | Product weight | 1010g |
| Type of mounting | With internal thread | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 1369124 |
