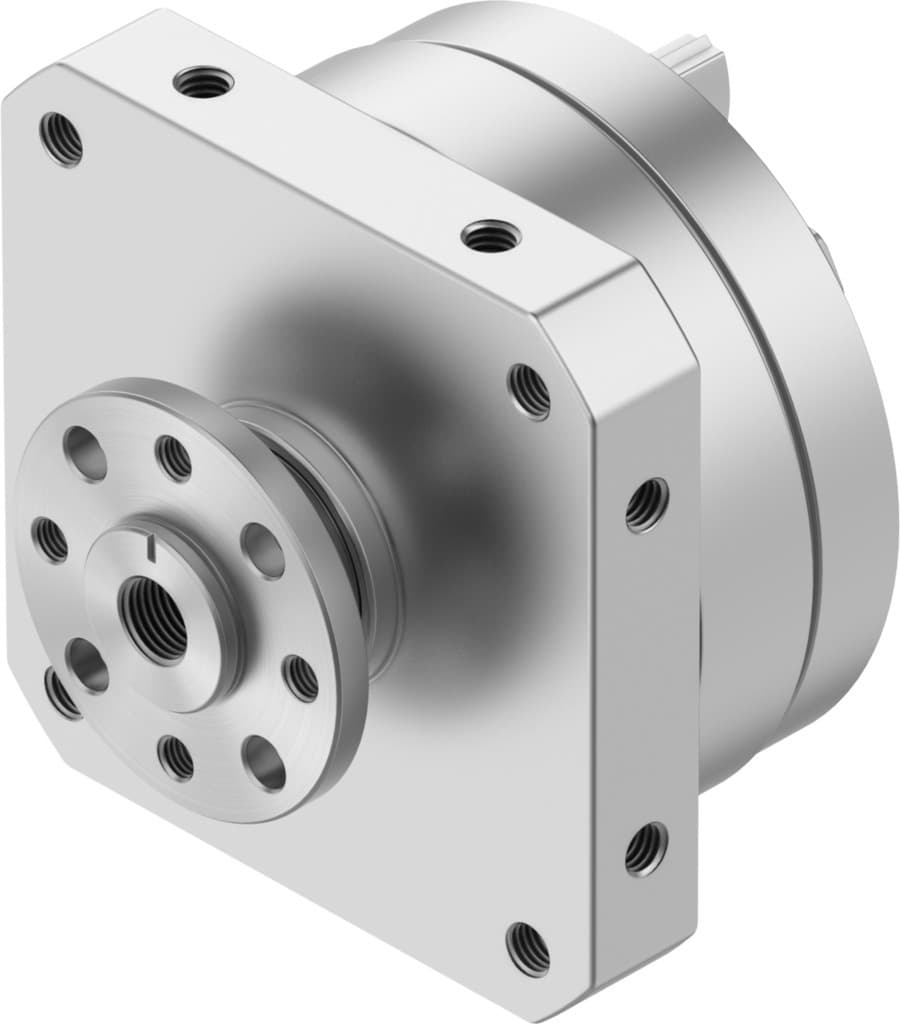

dsm-25-270-fw-a-b
Product ID:11538
Updated: 2026/4/3
Key Features
- 1Engineer precise automation with a wide 0-270° adjustable swivel angle. 2、Reduce system wear using integrated shock absorbers for cushioning. 3、Enable accurate control via built-in position sensing capabilities. 4、Power pneumatic applications with compressed air per ISO8573-1:2010. 5、Simplify installation in any position for flexible design integration.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 25 | Swivel angle | 0deg 270deg |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 1.5bar 10bar |
| Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 60°C |
| Max. axial force | 50N | Max. radial force | 120N |
| Theoretical torque at 6 bar | 5Nm | Product weight | 645g |
| Type of mounting | With internal thread | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 547598 |
Specifications may be subject to change without notice
