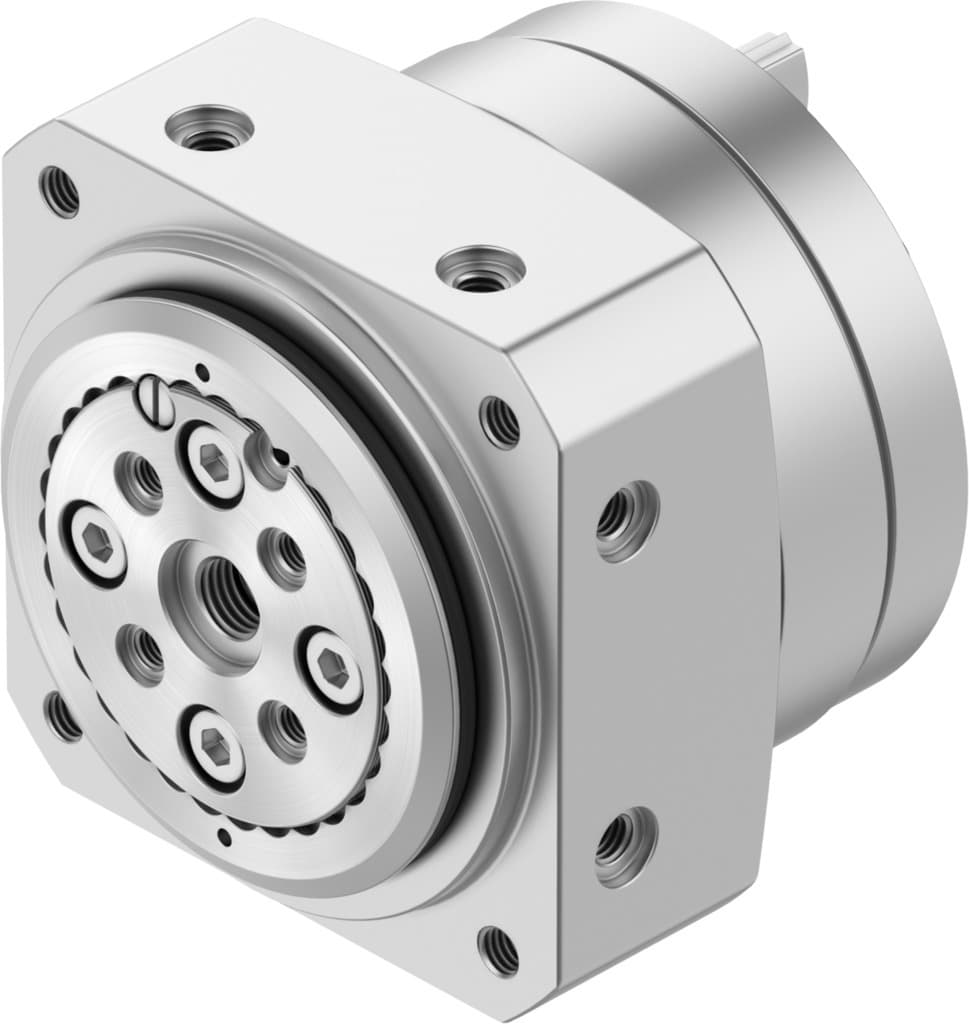

dsm-25-270-hd-a-b
Product ID:1363
Updated: 2026/4/4
Key Features
- 1Achieve versatile 0-270° positioning with the Festo DSM-25-270-HD-A-B semi-rotary drive. 2、Ensure reliable bidirectional motion using its efficient double-acting operation. 3、Benefit from durable construction featuring a corrosion-resistant nickel-plated steel shaft. 4、Enable precise control via integrated position detection with a proximity switch. 5、Operate seamlessly within 2-10 bar pressure ranges per ISO 8573-1:2010 standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 25 | Swivel angle | 0deg 270deg |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 2bar 10bar |
| Max. swivel frequency at 6?bar | 1.5Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Max. axial force | 350N |
| Max. radial force | 450N | Theoretical torque at 6 bar | 5Nm |
| Product weight | 950g | Type of mounting | With internal thread |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy | Manufacturer ID | 1369112 |
Specifications may be subject to change without notice
