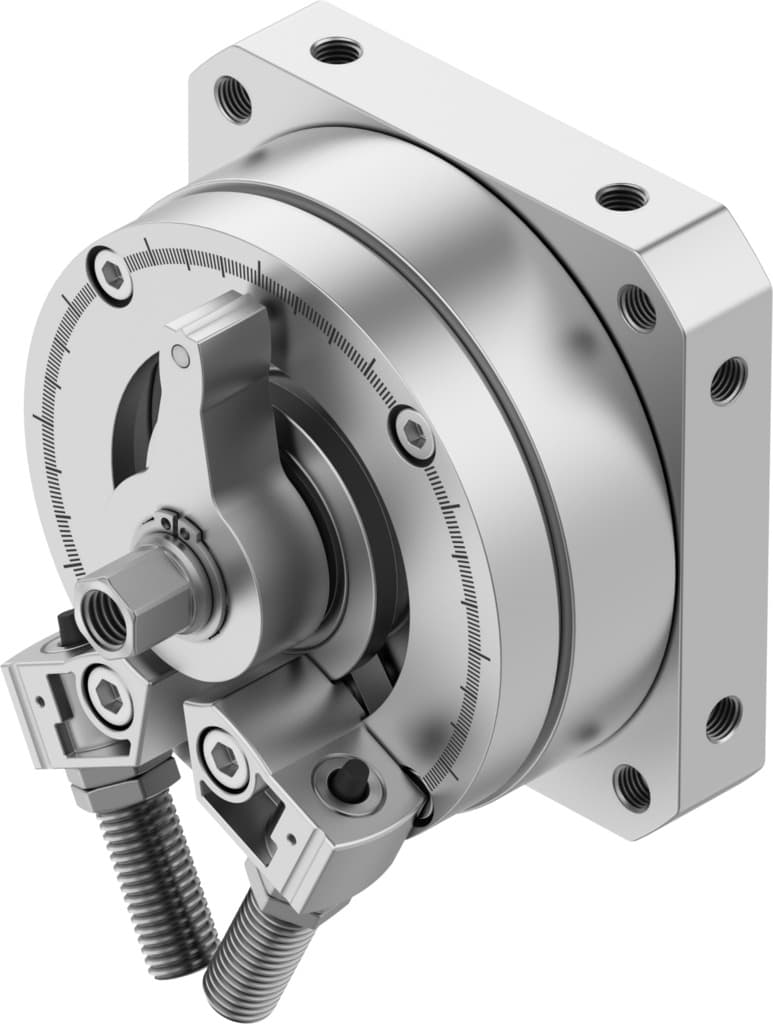

dsm-32-270-p1-fw-a-b
Product ID:13223
Updated: 2026/4/4
Key Features
- 1Adjust swivel angles from 0 to 246 degrees for versatile positioning. 2、Utilize double-sided elastic silencer rings for smooth and quiet operation. 3、Integrate compatible proximity switches for accurate angle detection. 4、Handle compressed air from 1.5 to 10 bar for robust performance. 5、Ensure durability with nickel-plated steel shafts and TPE-U seals.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 32 | Cushioning angle | 6.5deg |
| Adjustment range of swivel angle | 0deg 246deg | Swivel angle | 0deg 246deg |
| Cushioning | Elastic cushioning rings/pads at both ends with fixed stop | Mounting position | Any |
| Precision adjustment | -6deg | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 1.5bar 10bar |
| Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Max. axial force | 75N |
| Max. radial force | 200N | Theoretical torque at 6 bar | 10Nm |
| Permissible mass moment of inertia | 0.075kgm2 | Product weight | 1550g |
| Type of mounting | With internal thread | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 566210 |
Specifications may be subject to change without notice
