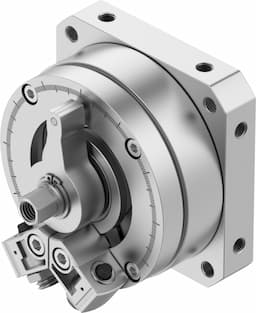

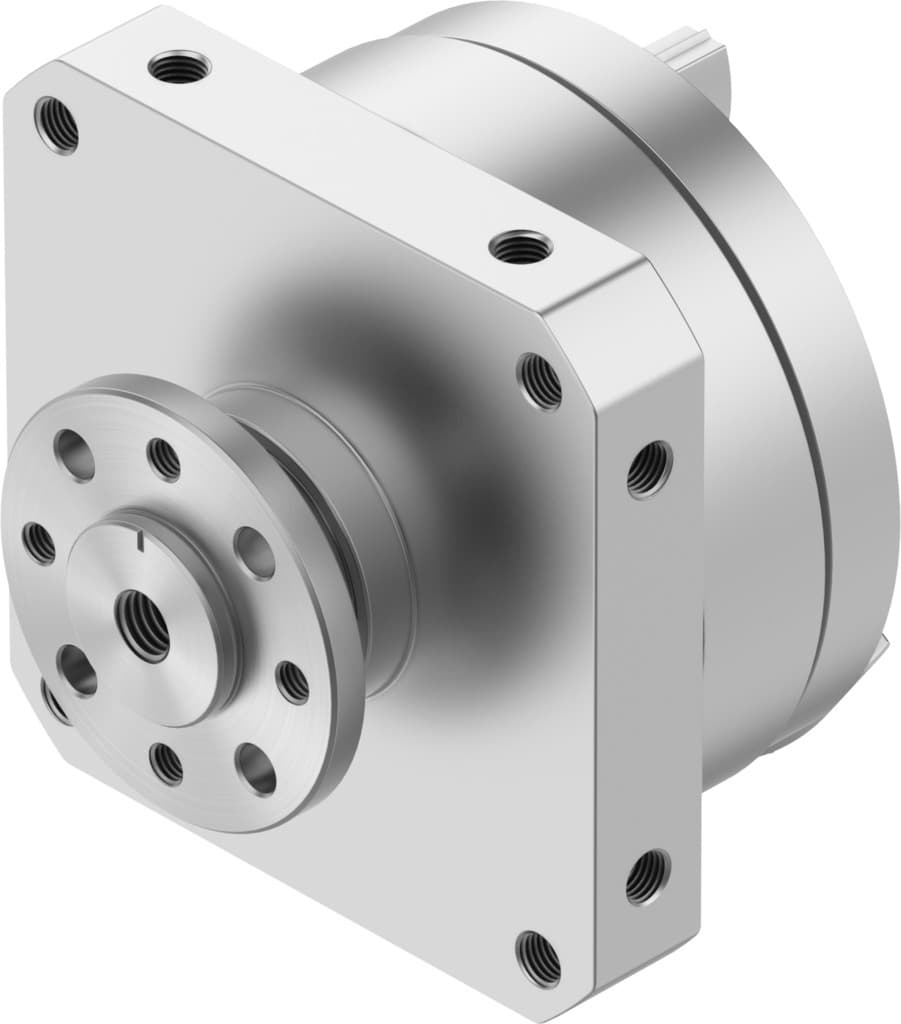

dsm-32-270-p-fw-a-b
Product ID:11524
Updated: 2026/4/3
Key Features
- 1Achieve a 270° swivel angle with high precision. 2、Utilize a double-acting rotary vane design for smooth motion. 3、Operate within a 1.5 to 10 bar pressure range reliably. 4、Benefit from corrosion-resistant nickel-plated steel construction. 5、Enable optional position sensing for enhanced system control.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 32 | Cushioning angle | 1.4deg |
| Adjustment range of swivel angle | 0deg 270deg | Swivel angle | 0deg 270deg |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Precision adjustment | -6deg | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 1.5bar 10bar |
| Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 60°C |
| Max. axial force | 75N | Max. radial force | 200N |
| Theoretical torque at 6 bar | 10Nm | Permissible mass moment of inertia | 0.025kgm2 |
| Product weight | 1500g | Type of mounting | With internal thread |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy | Manufacturer ID | 547583 |
Specifications may be subject to change without notice
