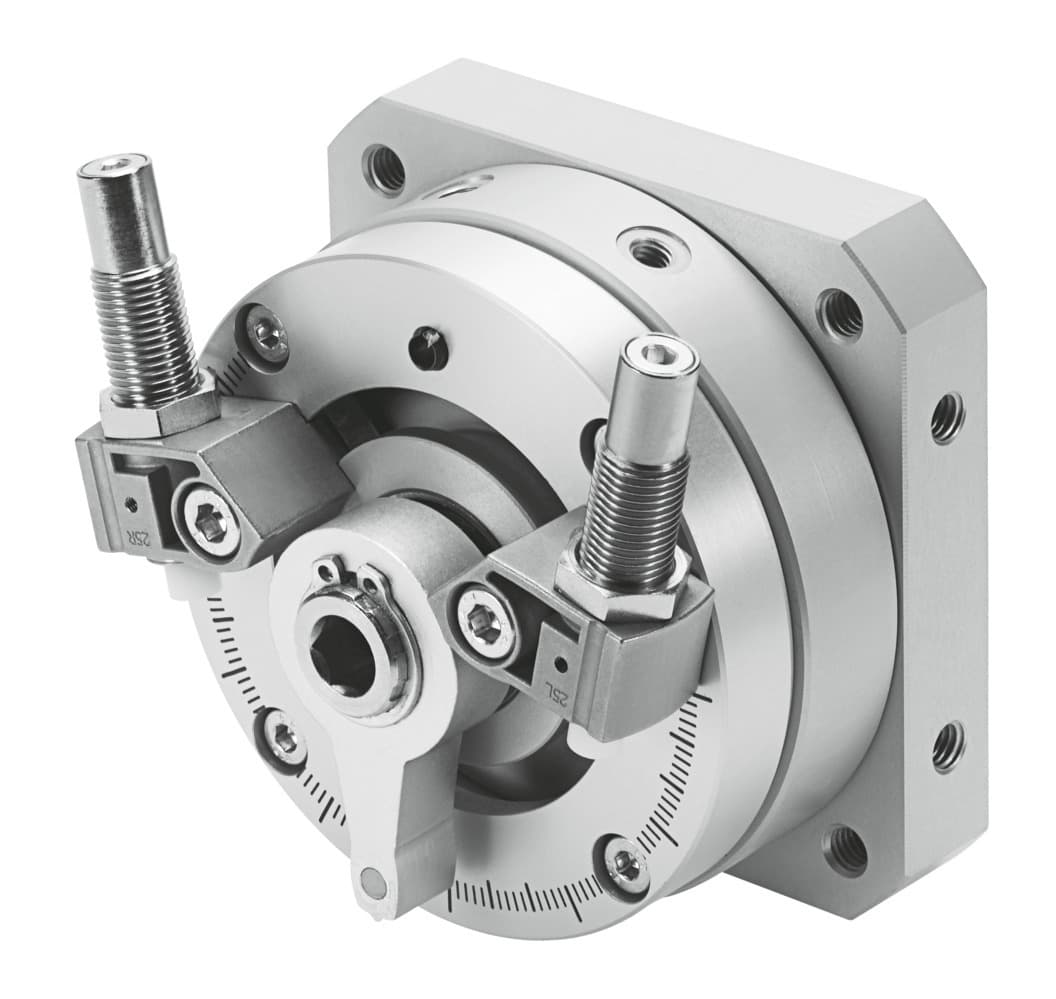

dsm-40-270-cc-a-b
Product ID:11529
Updated: 2026/4/3
Key Features
- 1Achieve versatile 0 to 240-degree swivel angle adjustment. 2、Operate smoothly with double-acting principle and integrated shock absorber. 3、Withstand diverse environments from -10 to 60°C. 4、Integrate easily into systems with 1.5-10 bar pressure range. 5、Ensure durability with aluminum alloy and nickel-plated steel construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 40 | Cushioning angle | 16deg |
| Adjustment range of swivel angle | 0deg 240deg | Swivel angle | 0deg 240deg |
| Cushioning | Pneumatic shock absorber at both ends | Mounting position | Any |
| Precision adjustment | -3deg | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 1.5bar 10bar |
| Max. swivel frequency at 6?bar | 0.7Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Max. axial force | 120N |
| Max. radial force | 350N | Theoretical torque at 6 bar | 20Nm |
| Permissible mass moment of inertia | 0.11kgm2 | Product weight | 2800g |
| Type of mounting | With internal thread | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 547588 |
