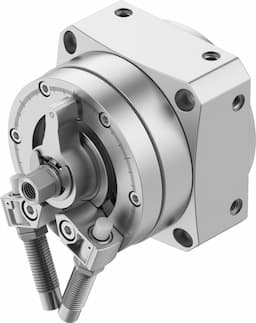

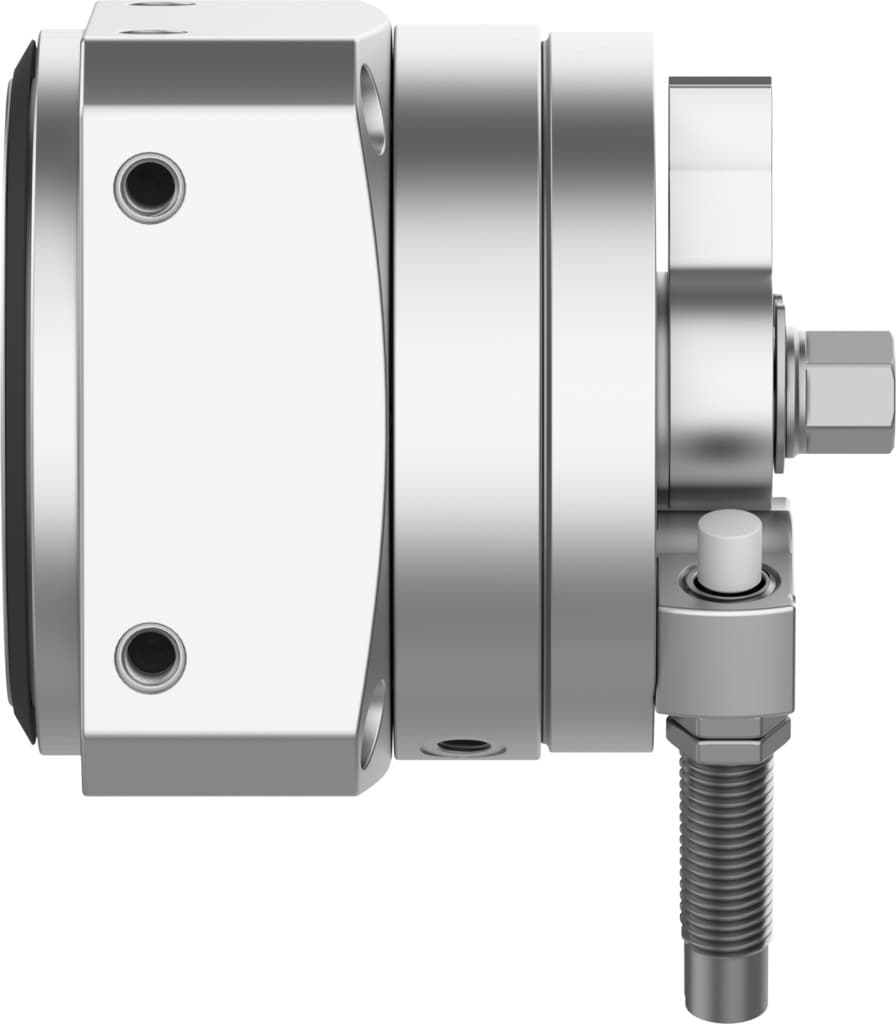

dsm-40-270-cc-hd-a-b
Product ID:1377
Updated: 2026/4/4
Key Features
- 1Deliver up to 80 Nm torque for heavy-duty industrial automation. 2、Achieve precise positioning with an infinitely adjustable swivel angle. 3、Ensure reliable operation with a robust heavy-duty bearing system. 4、Simplify integration using versatile threaded and collar mounting options. 5、Maximize durability with high-quality components and shock absorbers.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 40 | Cushioning angle | 16deg |
| Adjustment range of swivel angle | 0deg 240deg | Swivel angle | 0deg 240deg |
| Cushioning | Pneumatic shock absorber at both ends | Mounting position | Any |
| Precision adjustment | -3deg | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 2bar 10bar |
| Max. swivel frequency at 6?bar | 0.5Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Max. axial force | 950N |
| Max. radial force | 1200N | Theoretical torque at 6 bar | 20Nm |
| Permissible mass moment of inertia | 0.11kgm2 | Product weight | 4030g |
| Type of mounting | With internal thread | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 1369126 |
Specifications may be subject to change without notice
