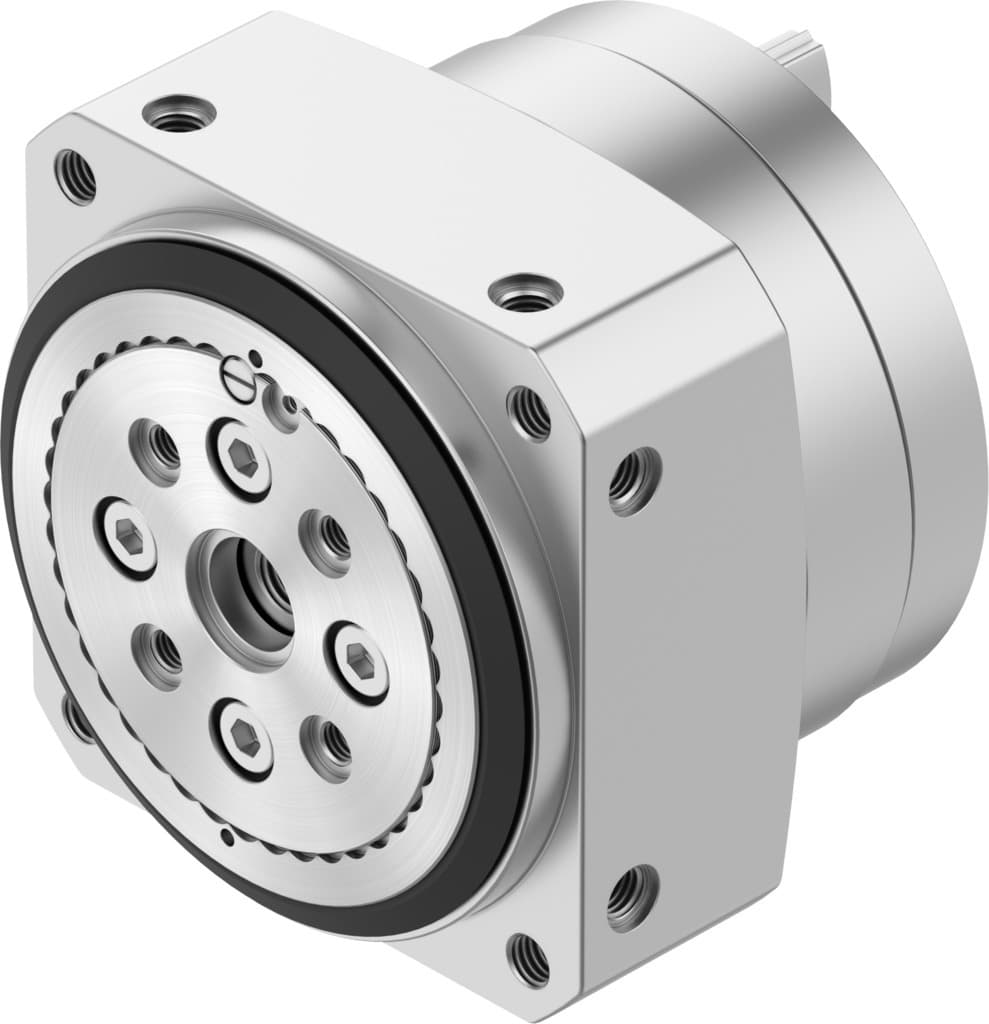

dsm-40-270-hd-a-b
Product ID:1365
Updated: 2026/4/4
Key Features
- 1Deliver up to 80 Nm of high torque for reliable heavy-duty operation. 2、Adjust the swivel angle from 0 to 270 degrees for flexible application. 3、Utilize heavy-duty, backlash-free bearings for high running accuracy. 4、Operate with compressed air meeting ISO 8573-1:2010 standards. 5、Integrate easily via versatile mounting options like threaded holes.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 40 | Swivel angle | 0deg 270deg |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 2bar 10bar |
| Max. swivel frequency at 6?bar | 1.5Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Max. axial force | 950N |
| Max. radial force | 1200N | Theoretical torque at 6 bar | 20Nm |
| Product weight | 3712g | Type of mounting | With internal thread |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy | Manufacturer ID | 1369114 |
Specifications may be subject to change without notice
