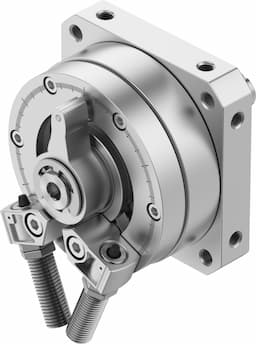

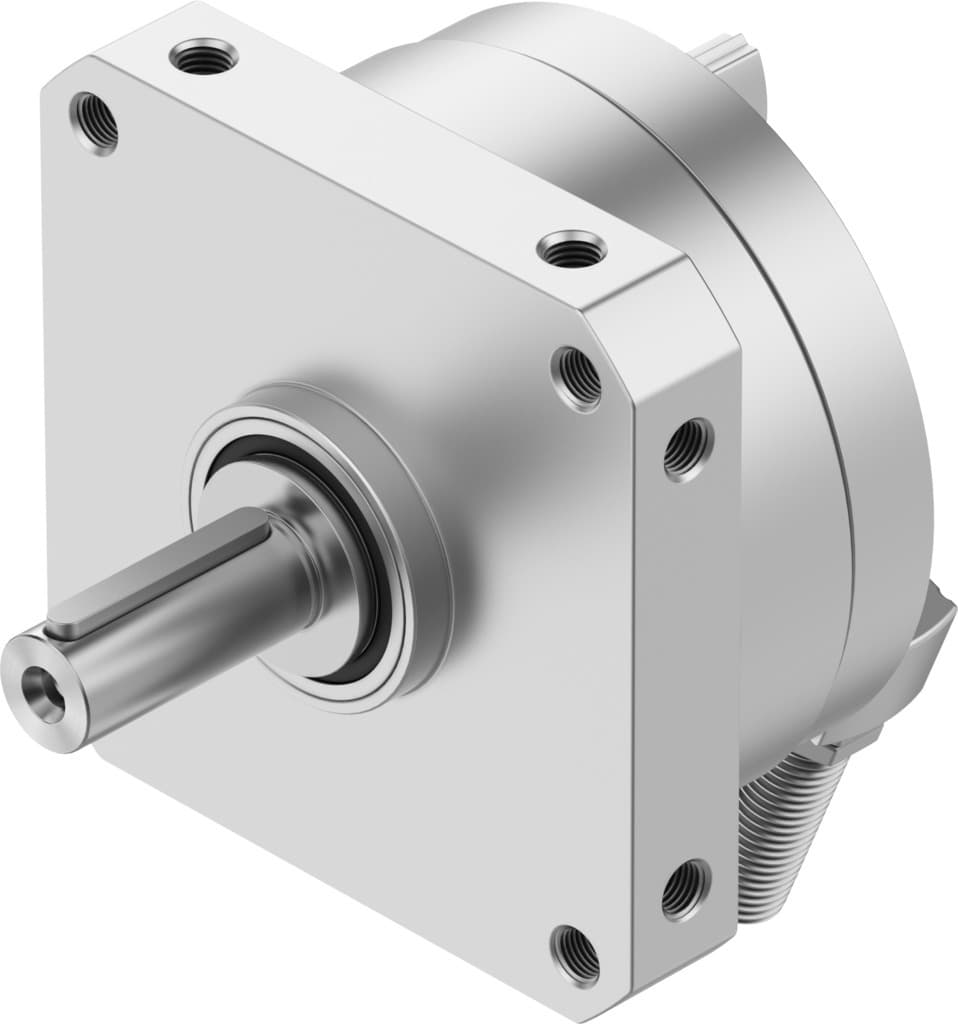

dsm-40-270-p1-a-b
Product ID:13224
Updated: 2026/4/4
Key Features
- 1Adjust swivel angles precisely from 0 to 240 degrees. 2、Construct with nickel-plated steel and aluminum alloy for durability. 3、Incorporate elastic cushioning rings for smooth, low-vibration operation. 4、Mount in any position with optional fine adjustment up to -6 degrees. 5、Comply with ISO 8573-1:2010 and RoHS standards for safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 40 | Cushioning angle | 6.5deg |
| Adjustment range of swivel angle | 0deg 240deg | Swivel angle | 0deg 240deg |
| Cushioning | Elastic cushioning rings/pads at both ends with fixed stop | Mounting position | Any |
| Precision adjustment | -6deg | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 1.5bar 10bar |
| Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Max. axial force | 120N |
| Max. radial force | 350N | Theoretical torque at 6 bar | 20Nm |
| Permissible mass moment of inertia | 0.105kgm2 | Product weight | 2870g |
| Type of mounting | With internal thread | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 566211 |
Specifications may be subject to change without notice
