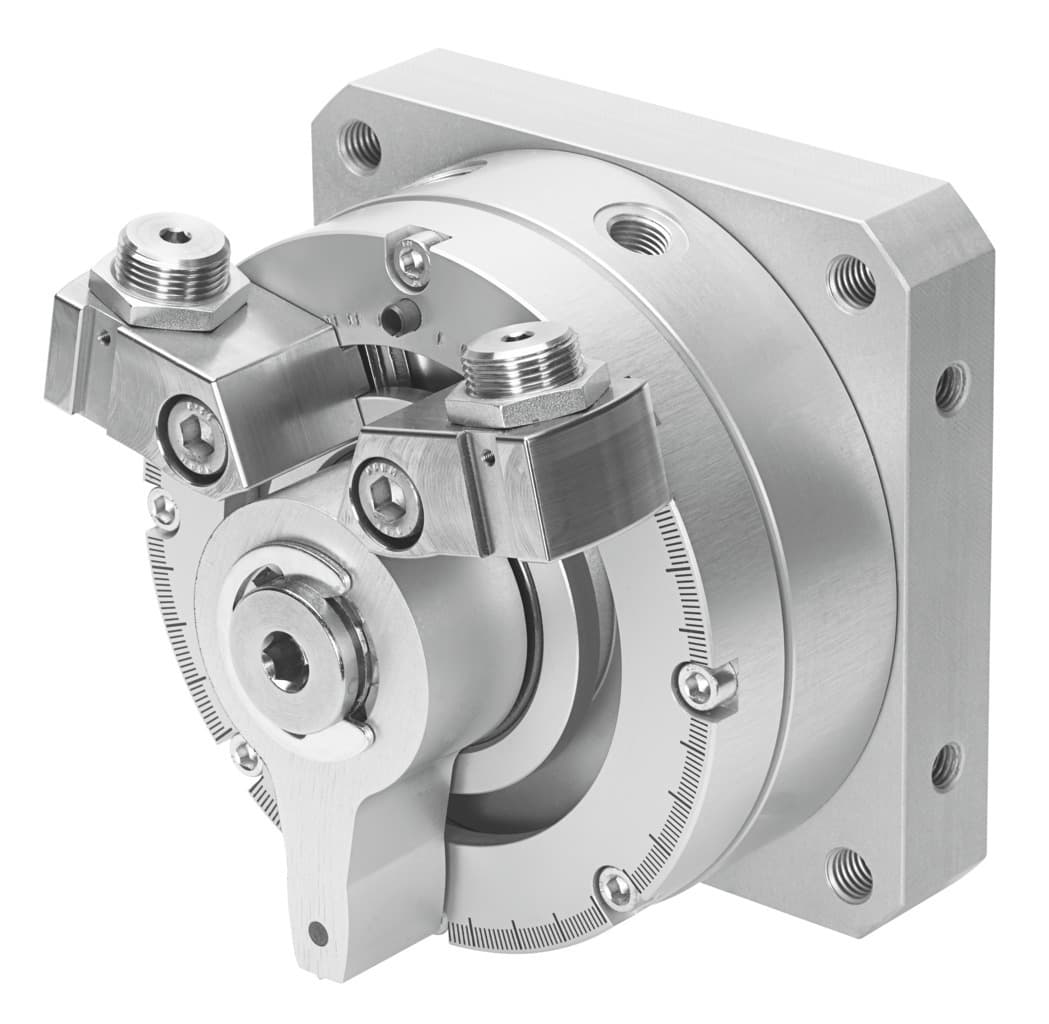

dsm-40-270-p-a-b
Product ID:11527
Updated: 2026/4/3
Key Features
- 1Ensure smooth operation with a 2-degree cushioning angle to minimize wear. 2、Achieve flexible positioning across a 0 to 270-degree rotation angle range. 3、Utilize a 0 to 270-degree swivel angle for versatile mounting. 4、Reduce vibration via flexible cushioning rings at both drive ends. 5、Operate reliably with 1.5 to 10 bar pressure for broad application.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 40 | Cushioning angle | 2deg |
| Adjustment range of swivel angle | 0deg 270deg | Swivel angle | 0deg 270deg |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Precision adjustment | -6deg | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 1.5bar 10bar |
| Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 60°C |
| Max. axial force | 120N | Max. radial force | 350N |
| Theoretical torque at 6 bar | 20Nm | Permissible mass moment of inertia | 0.035kgm2 |
| Product weight | 2700g | Type of mounting | With internal thread |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy | Manufacturer ID | 547586 |
