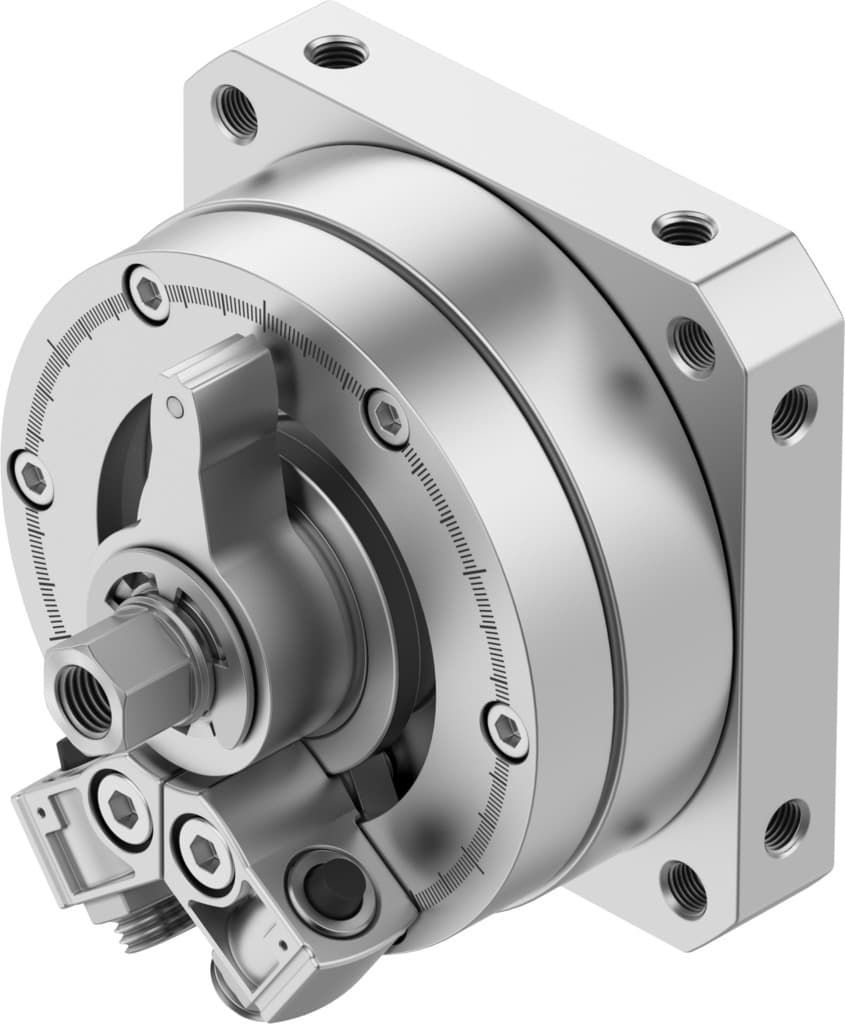

dsm-40-270-p-fw-a-b
Product ID:11528
Updated: 2026/7/13
Key Features
- 1Achieve versatile 0-270° positioning with the DSM-40-270-P-FW-A-B.
- 2Ensure smooth operation using flexible cushioning rings.
- 3Control motion precisely via double-acting principle.
- 4Operate reliably with 2-10 bar compressed air.
- 5Maintain high-speed precision at 2 Hz frequency.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 40 | Cushioning angle | 2deg |
| Adjustment range of swivel angle | 0deg 270deg | Swivel angle | 0deg 270deg |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Precision adjustment | -6deg | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 1.5bar 10bar |
| Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 60°C |
| Max. axial force | 120N | Max. radial force | 350N |
| Theoretical torque at 6 bar | 20Nm | Permissible mass moment of inertia | 0.035kgm2 |
| Product weight | 2835g | Type of mounting | With internal thread |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy | Manufacturer ID | 547587 |
Specifications may be subject to change without notice
