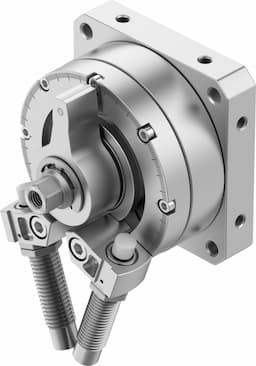

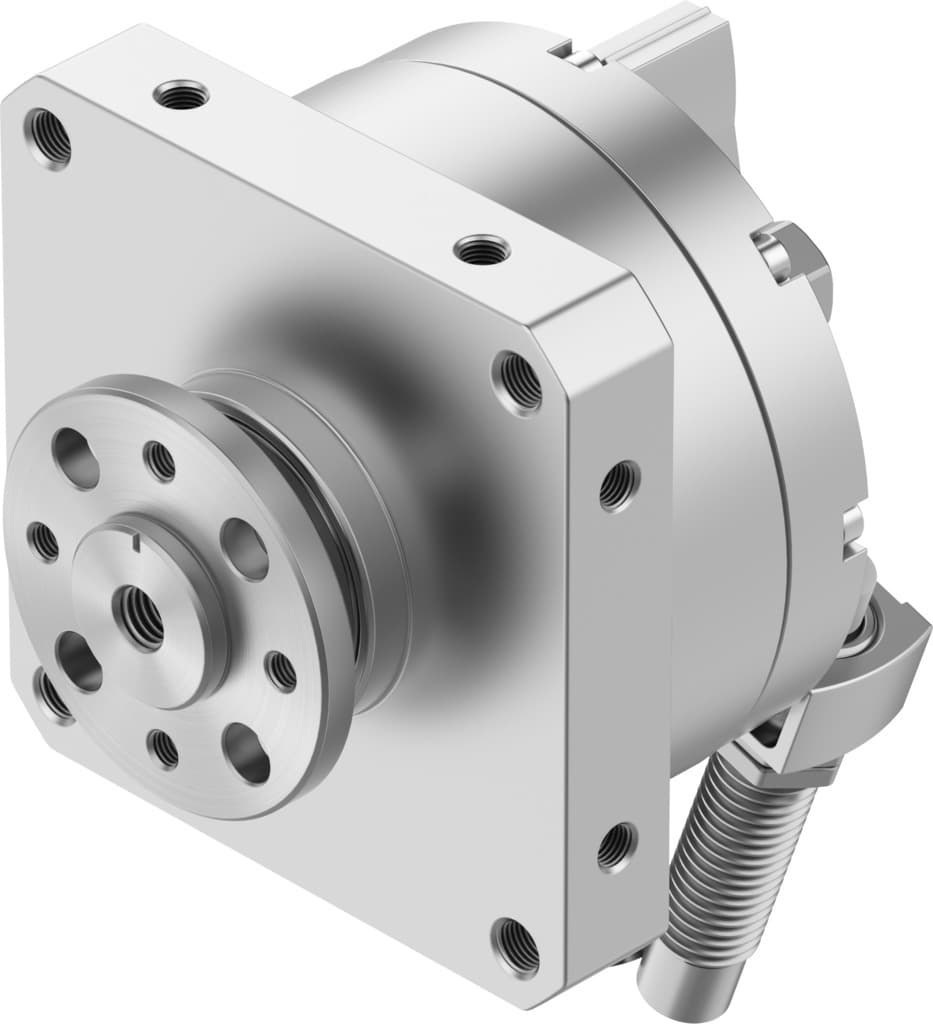

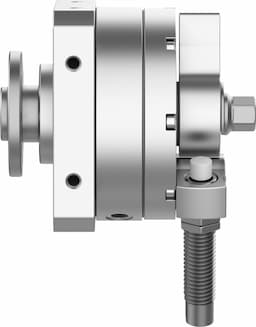

dsm-63-270-cc-fw-a-b
Product ID:11908
Updated: 2026/4/3
Key Features
- 1Achieve flexible automation with a 0-240° adjustable swivel angle. 2、Ensure smooth operation using integrated 17.5° cushioning and shock absorbers. 3、Optimize control via double-acting design for efficient air use. 4、Handle demanding applications at up to 10 bar operating pressure. 5、Minimize contamination risks with ISO 8573-1:2010 air compatibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 63 | Cushioning angle | 17.5deg |
| Adjustment range of swivel angle | 0deg 240deg | Swivel angle | 0deg 240deg |
| Cushioning | Pneumatic shock absorber at both ends | Mounting position | Any |
| Precision adjustment | -3deg | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 1.5bar 10bar |
| Max. swivel frequency at 6?bar | 0.6Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Max. axial force | 500N |
| Max. radial force | 500N | Theoretical torque at 6 bar | 40Nm |
| Permissible mass moment of inertia | 0.5kgm2 | Product weight | 5400g |
| Type of mounting | With internal thread | Pneumatic connection | G1/4 |
| Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 552082 |
Specifications may be subject to change without notice
