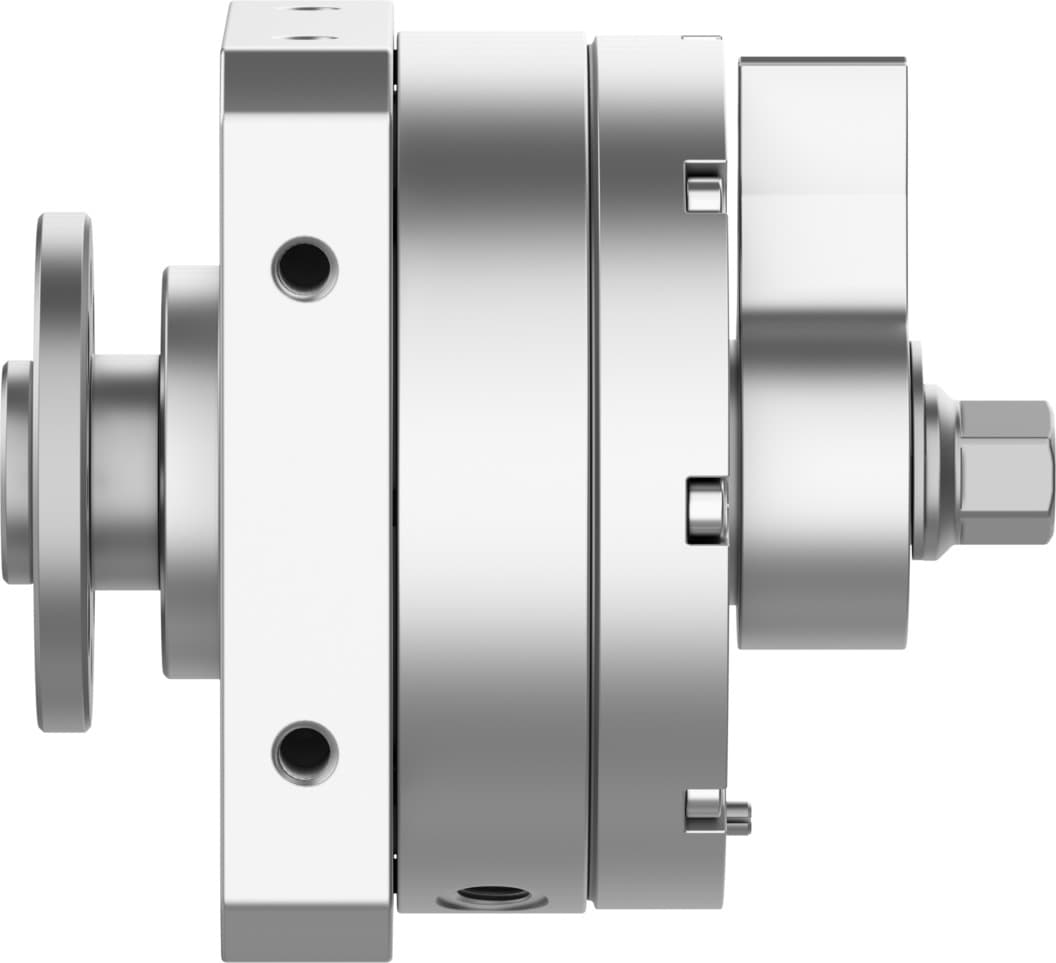

dsm-63-270-fw-a-b
Product ID:11910
Updated: 2026/4/3
Key Features
- 1Adjust swivel angles from 0 to 270 degrees for flexible application. 2、Utilize elastic cushioning at both ends for smooth operation and reduced wear. 3、Incorporate position sensing via a proximity switch for precise control. 4、Operate reliably at 0.15 to 1 MPa pressure in diverse industrial environments. 5、Feature a nickel-plated steel shaft and durable seals for corrosion resistance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 63 | Swivel angle | 0deg 270deg |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 1.5bar 10bar |
| Max. swivel frequency at 6?bar | 1.6Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Max. axial force | 500N |
| Max. radial force | 500N | Theoretical torque at 6 bar | 40Nm |
| Product weight | 4475g | Type of mounting | With internal thread |
| Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
| Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy | Manufacturer ID | 552084 |
Specifications may be subject to change without notice
