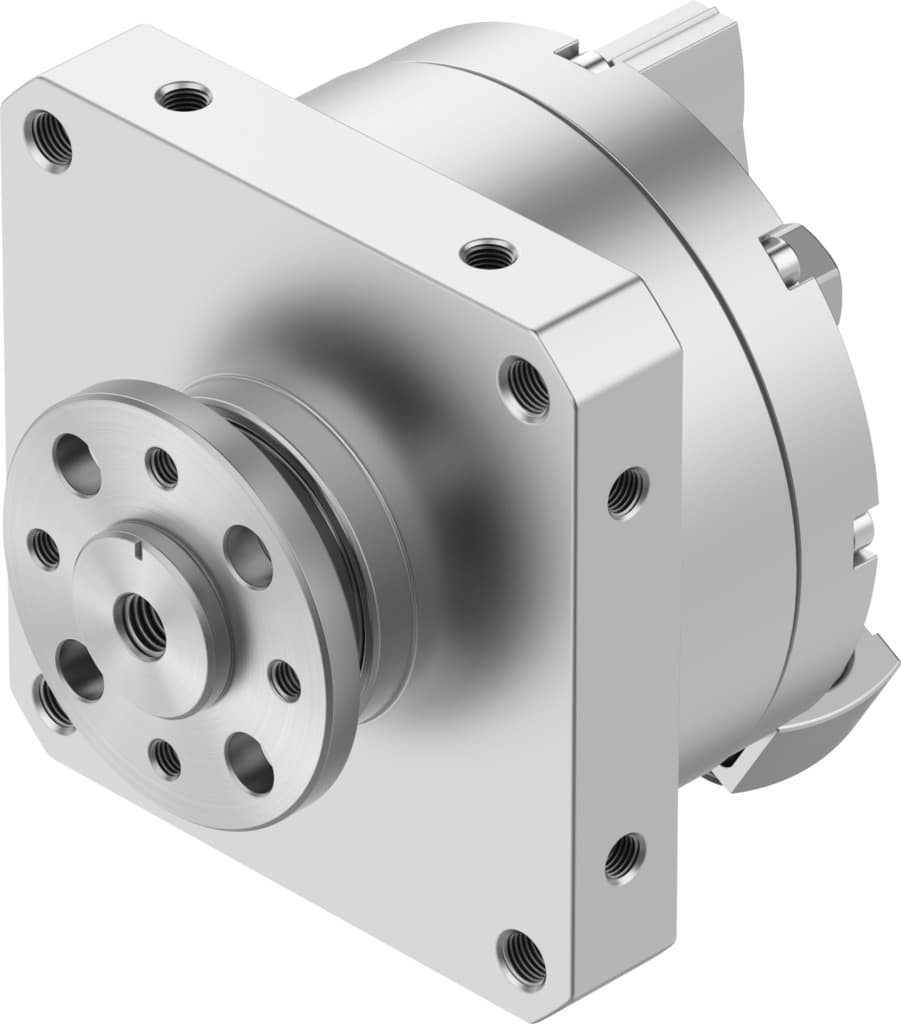

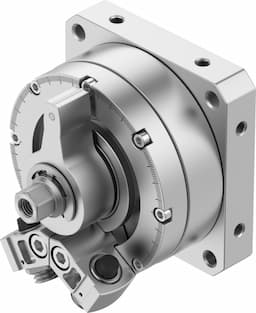

dsm-63-270-p-fw-a-b
Product ID:11906
Updated: 2026/4/3
Key Features
- 1Adjust rotation from 0 to 270 degrees for flexible application. 2、Integrate elastic cushioning rings for smooth operation and reduced wear. 3、Enable precise positioning with built-in proximity switch detection. 4、Operate within a 1.5 to 10 bar pressure range for versatility. 5、Achieve up to 1.6 Hz swivel frequency for high performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 63 | Cushioning angle | 2deg |
| Adjustment range of swivel angle | 0deg 270deg | Swivel angle | 0deg 270deg |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Precision adjustment | -6deg | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 1.5bar 10bar |
| Max. swivel frequency at 6?bar | 1.6Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Max. axial force | 500N |
| Max. radial force | 500N | Theoretical torque at 6 bar | 40Nm |
| Permissible mass moment of inertia | 0.15kgm2 | Product weight | 5150g |
| Type of mounting | With internal thread | Pneumatic connection | G1/4 |
| Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 552080 |
