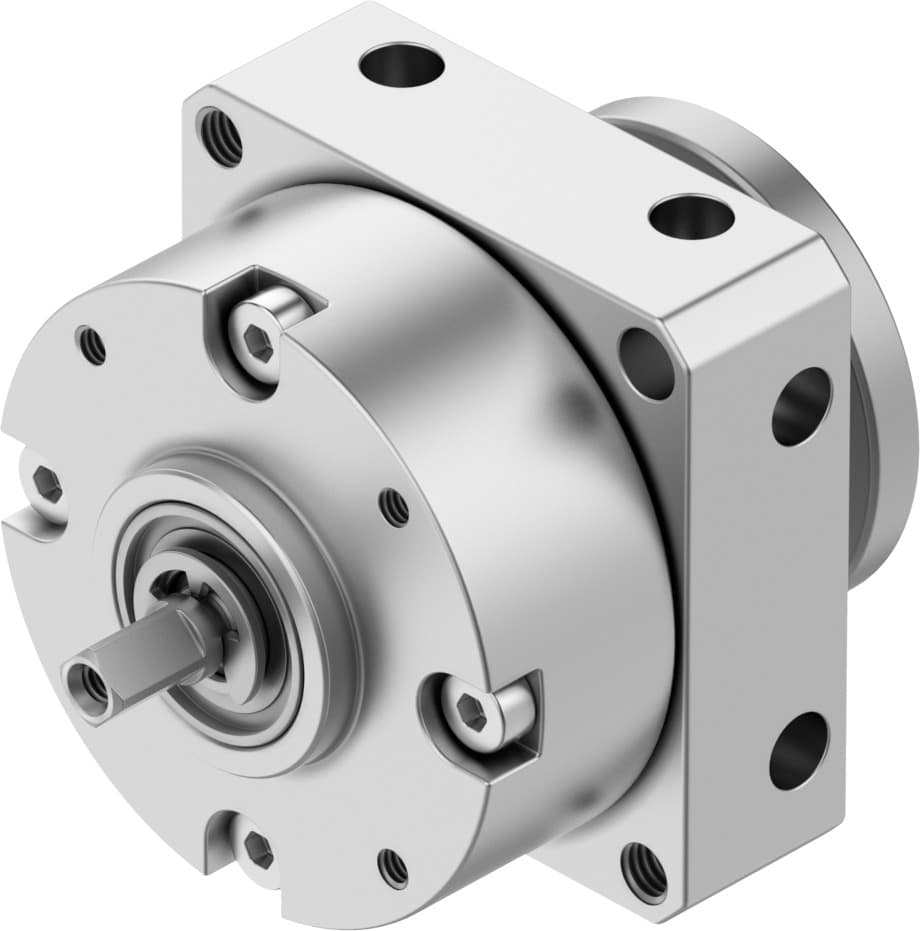

dsm-6-90-p-fw
Product ID:5830
Updated: 2026/4/3
Key Features
- 1Achieve precise 0-90° infinitely adjustable swivel angle control. 2、Reduce wear with elastic cushioning rings at both ends. 3、Handle versatile pneumatic tasks via double-acting operation. 4、Ensure durability with high-alloy stainless steel drive shaft. 5、Simplify integration with flexible female thread mounting.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Cushioning angle | 0.5deg |
| Swivel angle | 0deg 90deg | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | None |
| Symbol | 00991265 | Operating pressure | 3.5bar 8bar |
| Max. swivel frequency at 6?bar | 3Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | 0°C 60°C |
| Theoretical torque at 6 bar | 0.15Nm | Permissible mass moment of inertia | 6.5E-4kgm2 |
| Product weight | 51g | Type of mounting | With internal thread |
| Pneumatic connection | M3 | Note on materials | RoHS-compliant |
| Drive shaft material | High-alloy stainless steel | Seals material | TPE-U(PU) |
| Housing material | Aluminum Anodized | Manufacturer ID | 185928 |
Specifications may be subject to change without notice
